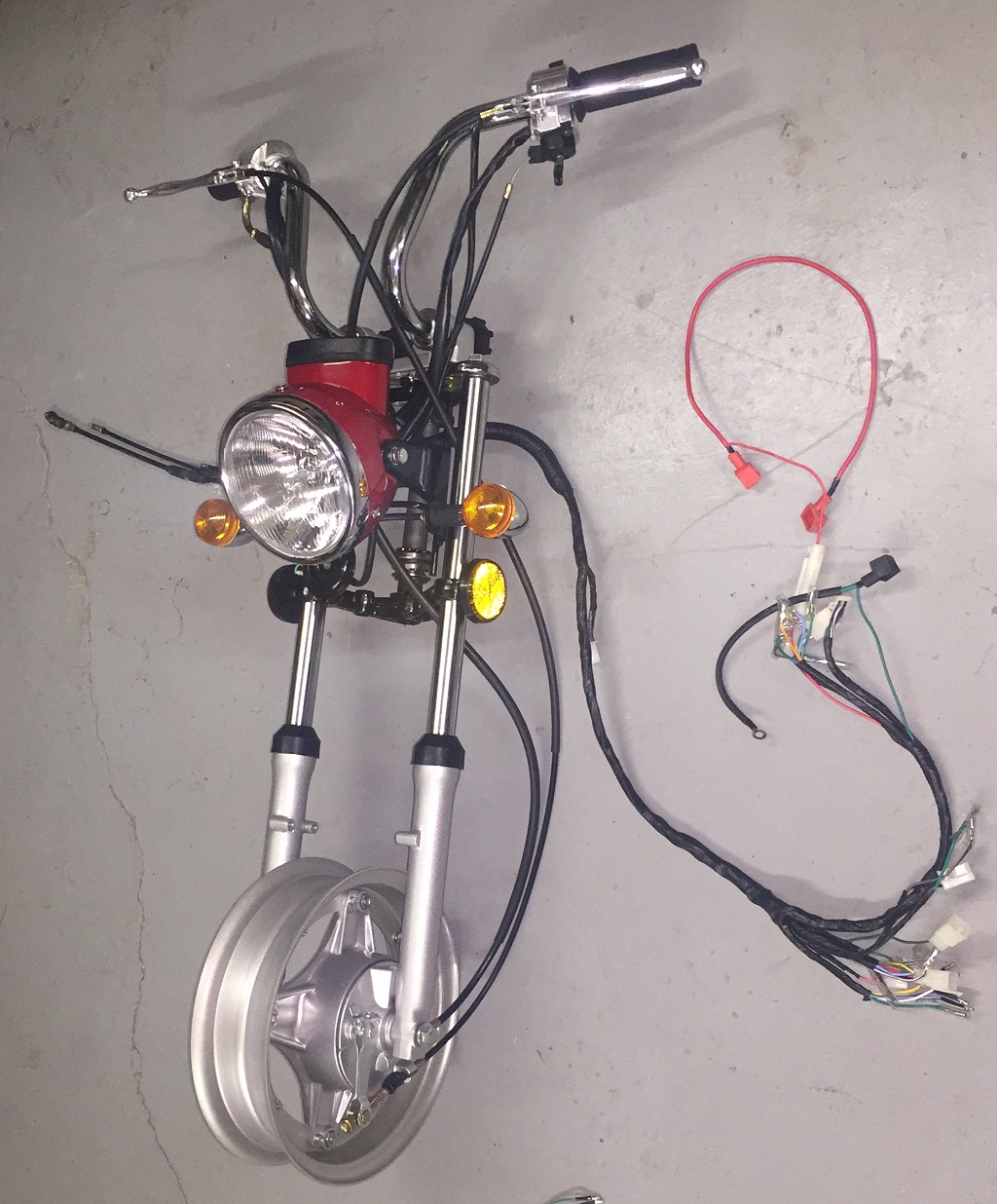

ADD NEW 1991 TO 1994 CT70 TYPE FORKS / FRONT END

TO YOUR CT70 NO MATTER WHAT THE YEAR


*


IF YOUR BIKE IS OLDER THAN 1991 YOU WILL NEED TO CONVERT THE BULBS TO 6V,, AND YOU

WILL NEED TO DO A LOT OF REWIRING TO USE THIS KIT..  IF YOUR USING A CLONE ENGINE NOT SO MUCH


*


COMES WITH 2 TYPES OF FRONT FENDERS HI / LOW THE HIGH TYPE WILL NEED 2 HOLES

 DRILLED TO BOLT ON , BUT THE LOW IS A GO AS IS

*

THE ONE RIM HALF WILL NEED A HOLE DRILLED FOR THE TUBE STEM, USE YOUR OLD RIM AS A PATTERN

*

THE FORKS ARE FILLED WITH OIL SO BOLT ON AND GO GO GO

*

SORRY NO INTERNATIONAL SHIPMENTS OF THIS ITEM !! TO MUCH RISK OF DAMAGE IN ALL THE EXTRA HANDLING

NOT ALL THE CONNECTORS ON THIS WIRE HARNESS WILL MATCH UP WITH WHAT YOU HAVE NOW !!

BUT WITH JUST SOME UNIVERSAL CONNECTORS IT WILL WORK WITH

1991 TO 1994 CT70'S OR OLDER BIKES WITH A LIFAN OR CLONE ENGINE.

NOW IF YOU HAVE A STOCK 1982 OR OLDER ENGINE, YOU WILL NEED TO DO SOME COMBINDING OF YOUR OLD HARNESS WITH/INTO

THE NEW HARNESS. YOU WILL NOT BE USING ALL OF EITHER HARNESS, BUT SOME OF BOTH HARNESS'S


THIS TAKES ANY 10" BY 3.50 OR 4.00 TIRE AND TUBE

ALL ELECTRICAL PARTS ARE 12 VOLT

Includes:

FRONT BRAKE, THROTTLE, CHOKE, SPEED-O-METER AND A MANUAL CLUTCH CABLE (CT70H TYPE) ,, YOU MAY NOT USE THE CHOKE OR MANUAL CLUTCH CABLE ON MOST MODELS


@ CT70_FRONT_END_UPGRADE_KIT

FITS_ALL_YEARS_BUT_READ (SORRY_LOWER_48_ONLY) (1003D) temp out of stock 1003D FEK
