CT70_ENGINE_SWAP PARTS_NEEDED SOME_INSTRUCTIONS

I WILL BE KEEPING ALL MY SWAPS 6 VOLT, JUST BECAUSE THE BATTERY AND LIGHTS CAN STAY ORIGINAL....



Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
PICK OUT A VICTIM


PULL OFF THE FW COVER AND CHAIN


TAKE OFF FOOTPEGS AND EXHAUST


TAKE OFF MORE


Click to enlarge
Click to enlarge
Click to enlarge
ENGINE_SWAP_WIRING  INSTALLING_A_CDI ENGINE_IN_POINTS TYPE_BIKE CT70K0_to_76  all_Z50A_MODELs  (SUB_W_1)
FIND STATOR CONNECTOR


DISCONNECT THE STATOR PLUG AND REMOVE 2 MOTOR MOUNT BOLTS


PUT OLD MOTOR IN "OLD MOTOR HOME"


ENGINE_SWAP_WIRING INSTALLING_A_CDI ENGINE_IN_POINTS TYPE_BIKE CT70K0_to_76 all_Z50A_MODELs (SUB_W_1)

ENGINE_SWAP_WIRING INSTALLING_A_CDI ENGINE_IN_POINTS TYPE_BIKE CT70K0_to_76 all_Z50A_MODELs (SUB_W_1) (SUB-W-1)$19.99
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
PLUG IT RIGHT INTO THE STOCK WIRE HARNESS CONNECTOR


THREAD THE MAIN PART BACK THRU THE BIG OPENING IN FRAME


JUST LOOK AT THE PRETTY COLORS OF WIRES


NOW LETS TAKE OUT THE BATTERY BOX


Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
SET THAT BAD BOY ASIDE FOR LATER


SEE THE COIL DOWN THERE?


HOW ABOUT NOW?


A MOUSE ATE THESE WIRES AS THEY HAVE BEEN SPLICED WITH PINK CONNECTORS


Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
REMOVE THE TOP TWO NUTS IN THIS PICTURE AND THEN TAKE OUT THE POINTS TYPE COIL

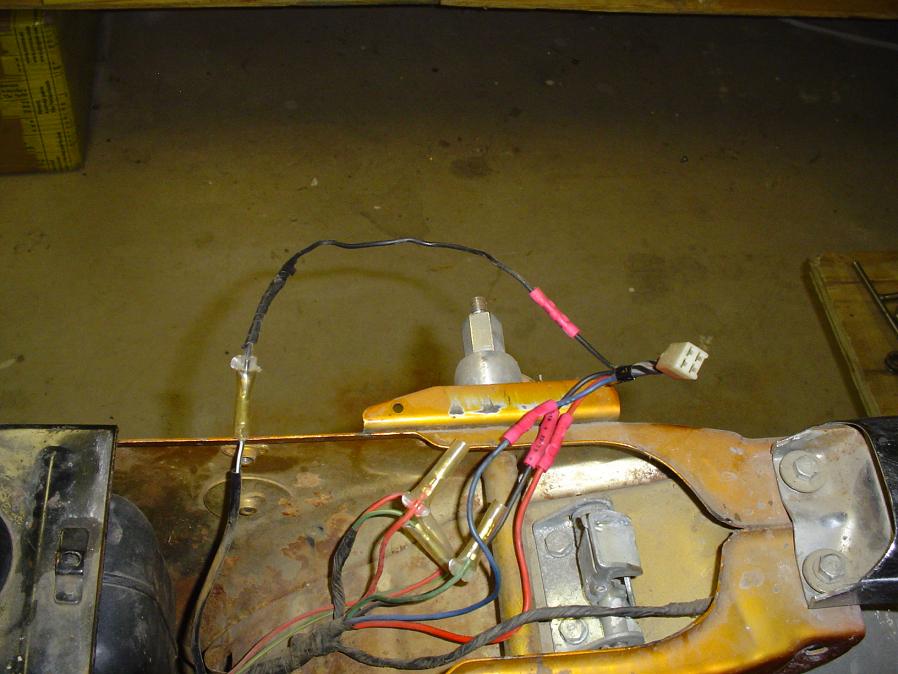

OH YOU MAY NEED TO UNPLUG IT FROM THE WIRE HARNESS FIRST (:


SELL THAT THERE COIL ON EBAY


NO MORE COIL DOWN THERE, BUT WE WILL ADD THE CDI COIL IN THE SAME PLACE


Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge

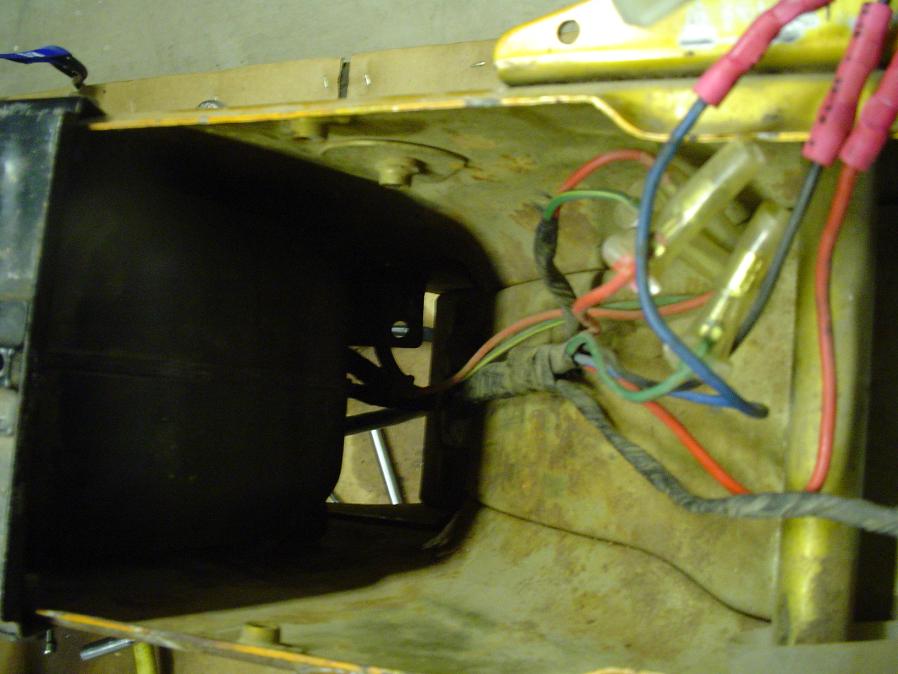

BIG HOLE===WE WILL FILL IT UP THOU


THIS IS THE CDI COIL


THERE IS A GREEN AND A BLACK WITH WHITE STRIPE WIRE


THE BLACK WIRE GET PLUGGED INTO THE NEW SUB WIRE HARNESS


Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
WE ARE GOING TO LET THE GREEN WIRE JUST DANGLE AS THE COIL WILL BE GROUND TO THE FRAME


SCREW ONE OF THE NUTS FROM THE OLD COIL ON THE STUD OF THE NEW_CDI COIL


THEN PUT THE COIL IN THE FRONT HOLE OF THE OLD COIL'S MOUNTING HOLES AND_TIGHTEN


LACE THE PLUG WIRE OUT THE FRONT HOLE AND THE MAIN SUB_HARNESS UP_THRU THE FRAME


Click to enlarge
Click to enlarge
Click to enlarge
BRING THE MAIN SUB HARNESS AS FAR OUT AS IT WILL COME


IT SHOULD GO THIS FAR TOWARDS THE TAIL LIGHT BRACKET


THE OLD BLACK WIRE THAT WENT TO THE OLD COIL WE WILL ALSO LEAVE DANGLE


OUR_OLD_VERSION OF GOING 6V WITH 12V LIFAN ENGINES


CHECK_THIS_OUT_!!!!! NEW__A WAY_BETTER_WAY TO WIRE IN A 6 OR 12 VOLT SYSTEM
12V_or_6V CT70 REGULATOR RECTIFIER_PIGTAIL  CLICK FOR_INSTRUCTIONS (SUB_W_12/12/6/6)
6_VOLT REGULATOR RECTIFIER CONVERTS_12V CLONE_ENGINES TO_6_VOLT!! KEEP_ORIGINAL LIGHTS_BATTERY  (6V_reg_rec)
12 VOLT REGULATOR RECTIFIER COMBINATION UNIT (214W)
CHECK_THIS_OUT_!!!!! NEW__A WAY_BETTER_WAY TO WIRE IN A 6 OR 12 VOLT SYSTEM


12V_or_6V CT70 REGULATOR RECTIFIER_PIGTAIL CLICK FOR_INSTRUCTIONS (SUB_W_12/12/6/6)

SUB-W-12/12/6/6$12.99
6_VOLT REGULATOR RECTIFIER CONVERTS_12V CLONE_ENGINES TO_6_VOLT!! KEEP_ORIGINAL LIGHTS_BATTERY (6V_reg_rec)

6V_reg_rec$15.50
12 VOLT REGULATOR RECTIFIER COMBINATION UNIT (214W)

214W$13.99
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
OK GET A MOTOR TO INSTALL *WE PICKED THE 120CC ZS*


SLIDE THE MOTOR MOUNT BOLTS IN AND TIGHTEN / SEE THE STATOR WIRE RUBBERS? CROOKED


THATS BETTER MR. STATOR WIRE RUBBER


HERE IS THE DIFFERENT WIRE COLORS


Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
WE GOT LUCKY ALL THE COLORS WERE A MATCH / THE NEUTRAL WIRE DON'T GET USED ON THE KO MODELS


TO USE THE NEUTRAL WIRE JUST SPLICE THE LIGHT GREEN STRIPED WIRES AND TUCK THEM INSIDE THE FRAME


TUCK ALL THE WIRES INSIDE THE FRAME / SOME OF THE FEMALE BULLET CONNECTORS NEED PINCHED TIGHTER


ADD CHAIN CARB EXHAUST ETC.


Click to enlarge
Click to enlarge
PUT ON A KICKER AND CHECK FOR SPARK


OH YA TURN ON THE KEY (:
