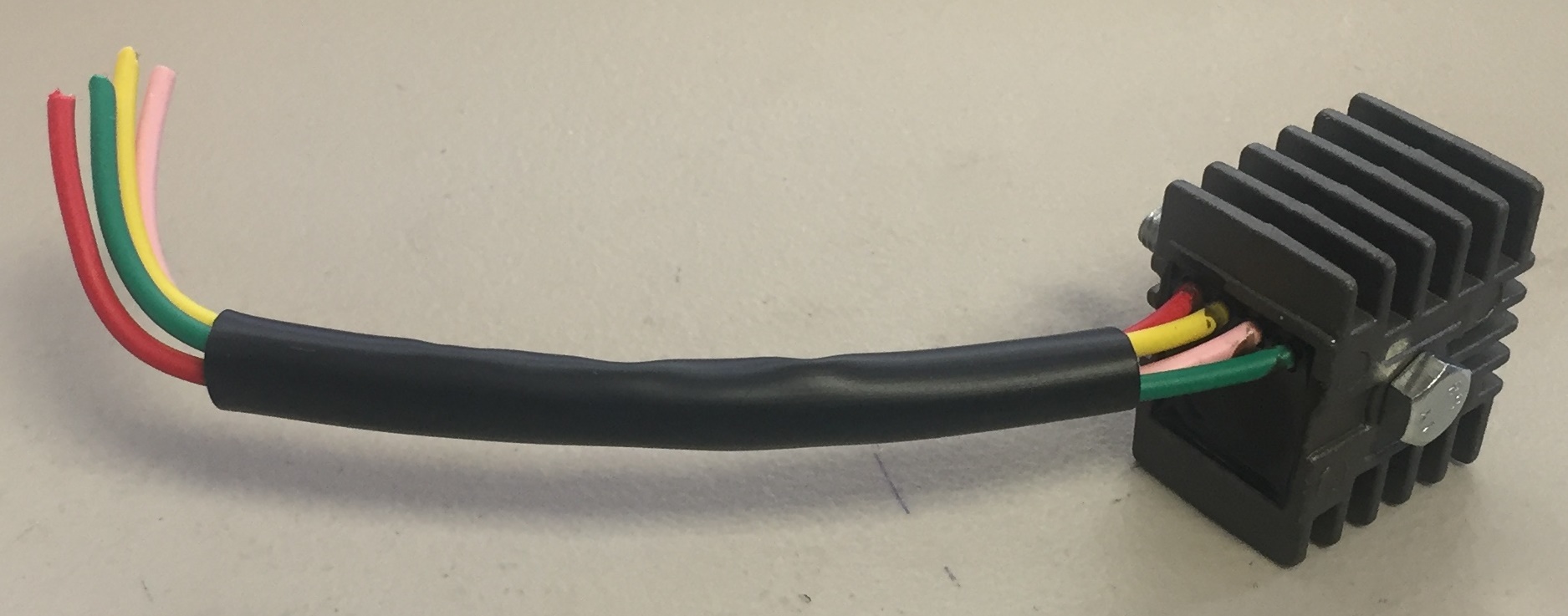

Click to enlarge@ RECTIFIER TESTING



Click to enlarge
Click to enlarge
Click to enlarge

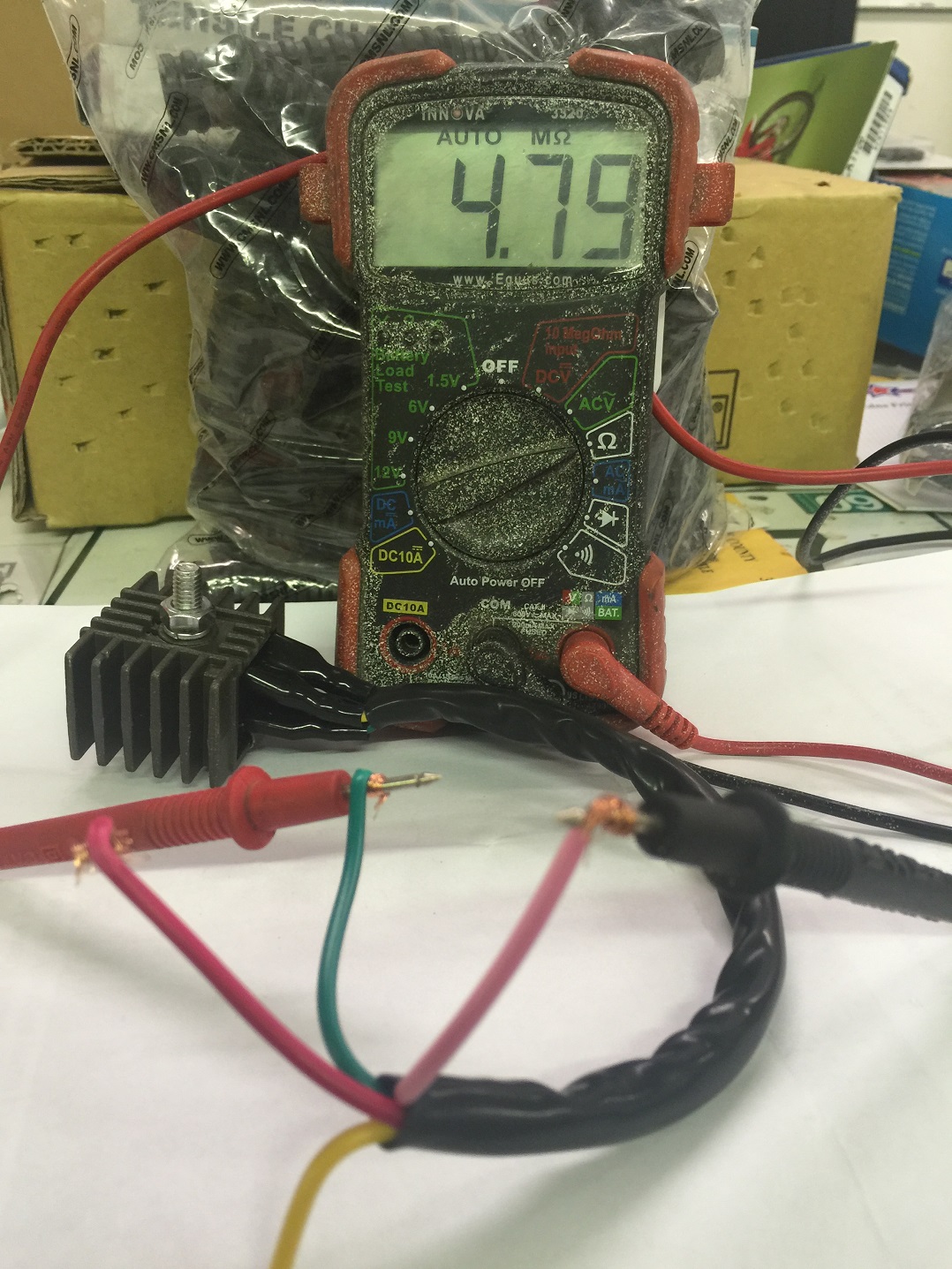

@ POSITIVE TO GREEN (GROUND) - NEGITIVE TO PINK --- SOME FLOW = GOOD

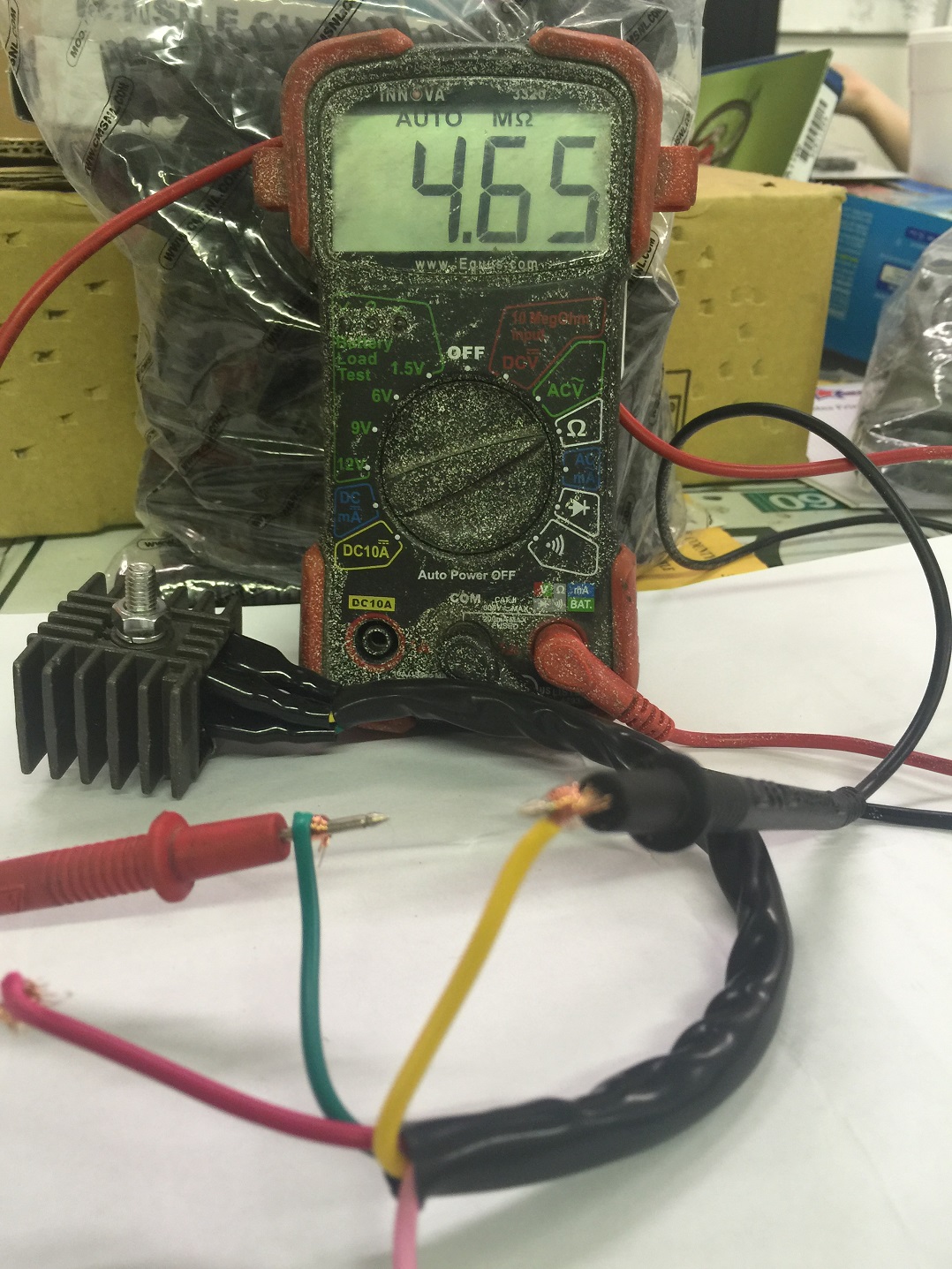

@ POSITIVE TO GREEN (GROUND) - NEGITIVE TO YELLOW --- SOME FLOW = GOOD

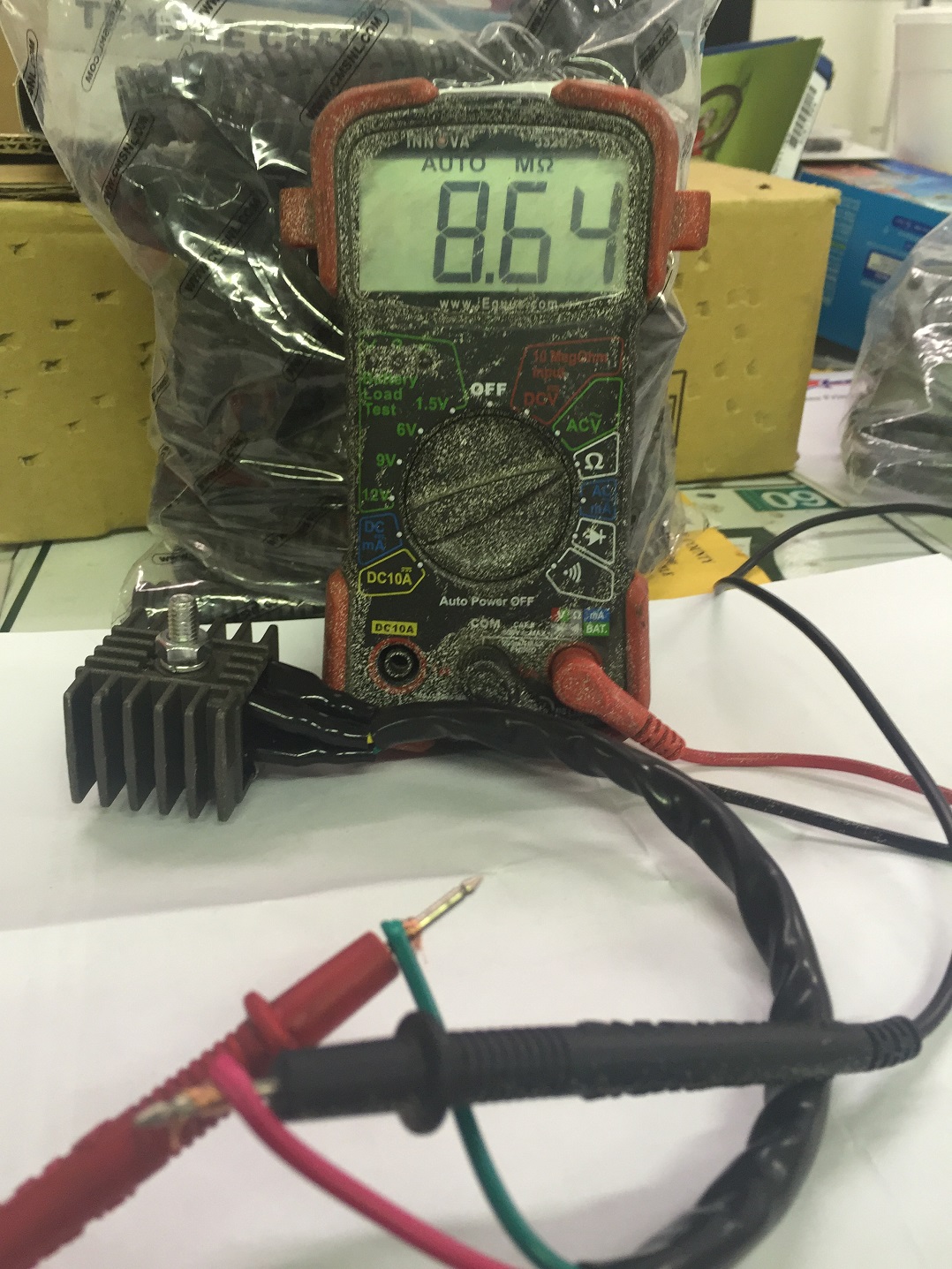

@ POSITIVE TO GREEN (GROUND) - NEGITIVE TO RED --- SOME FLOW = GOOD

Click to enlarge
Click to enlarge
Click to enlarge

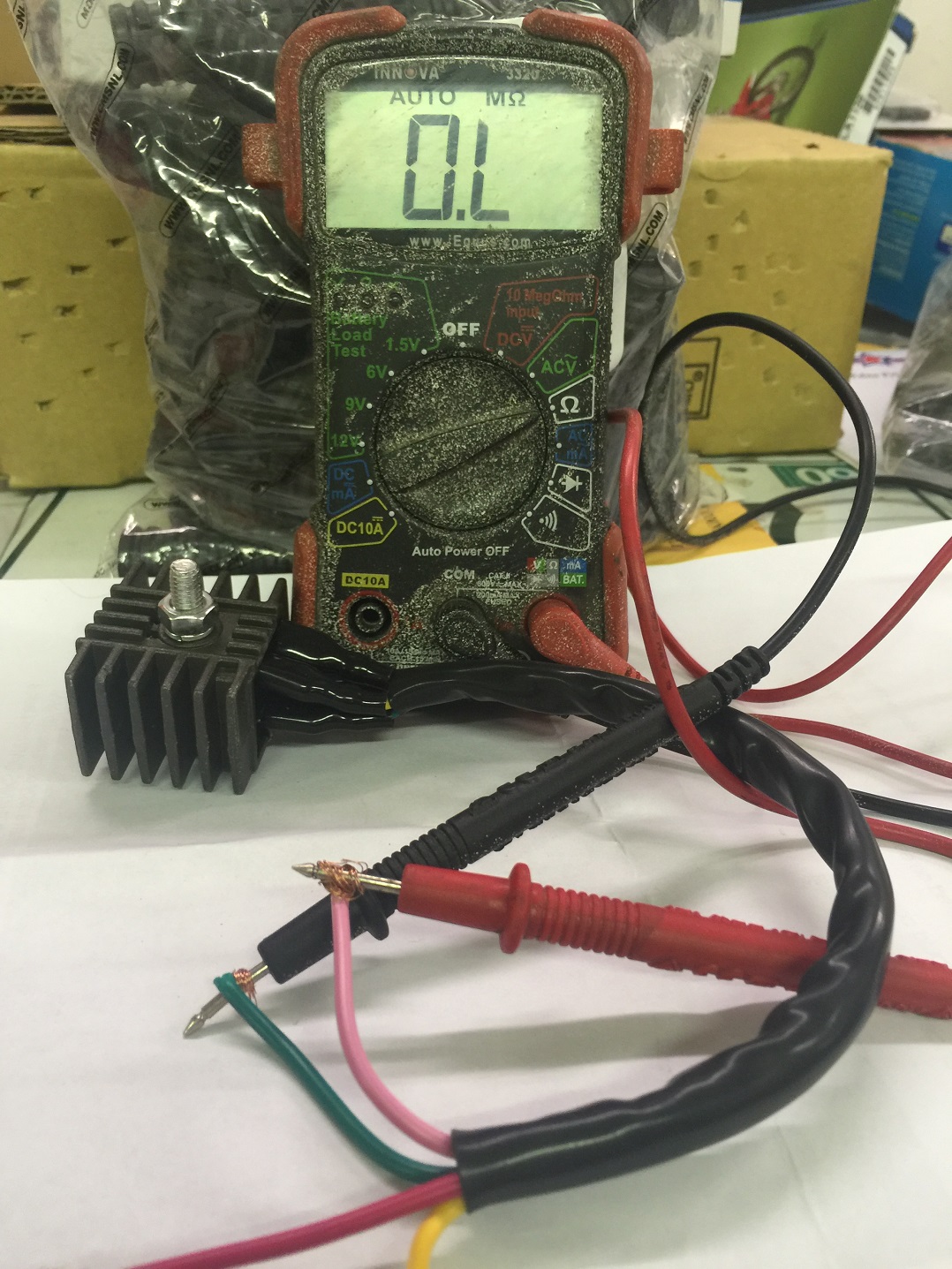

@ POSITIVE TO PINK - NEGITIVE TO GREEN (GROUND) --- NO FLOW = GOOD

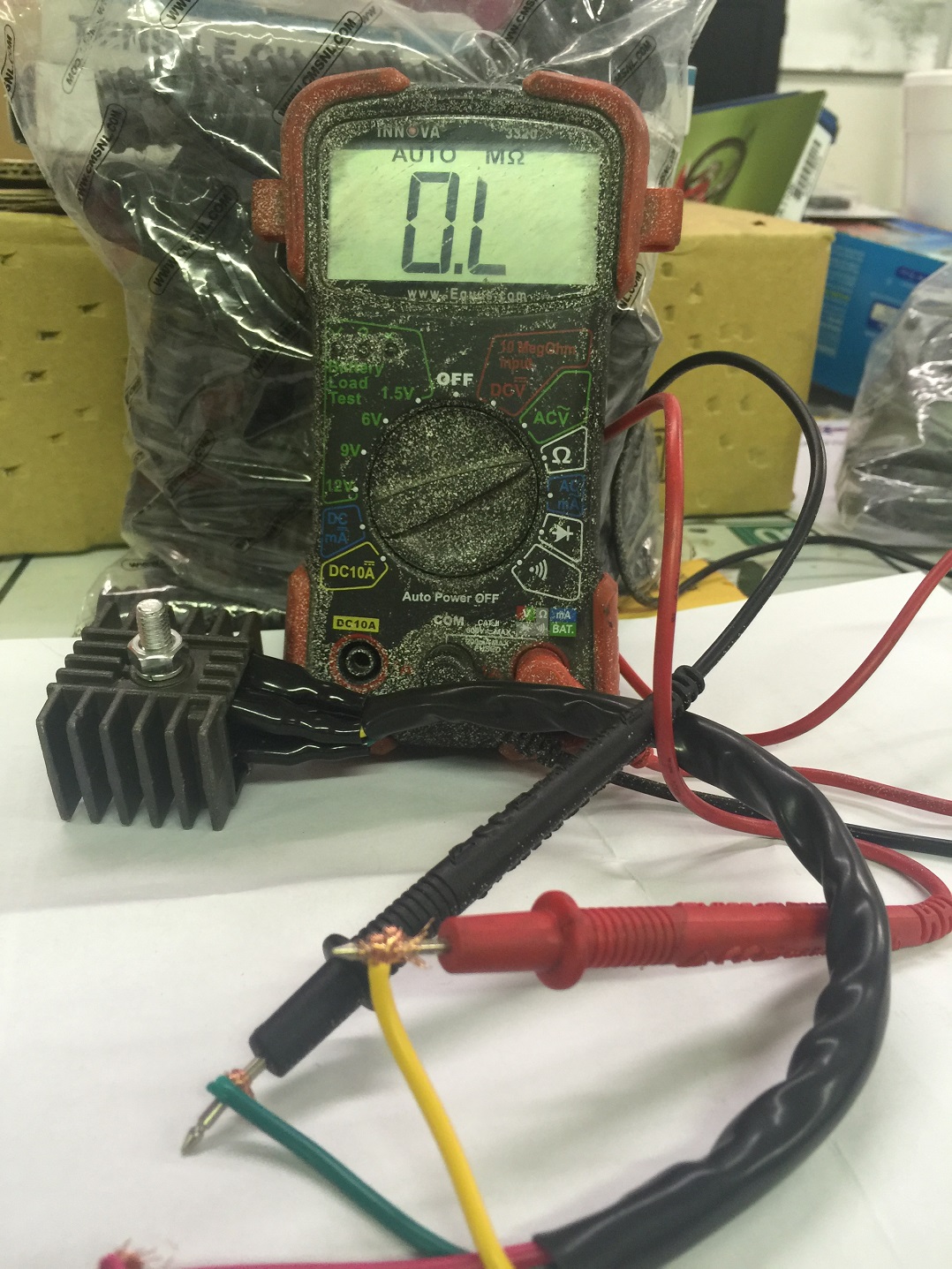

@ POSITIVE TO YELLOW - NEGITIVE TO GREEN (GROUND) --- NO FLOW = GOOD

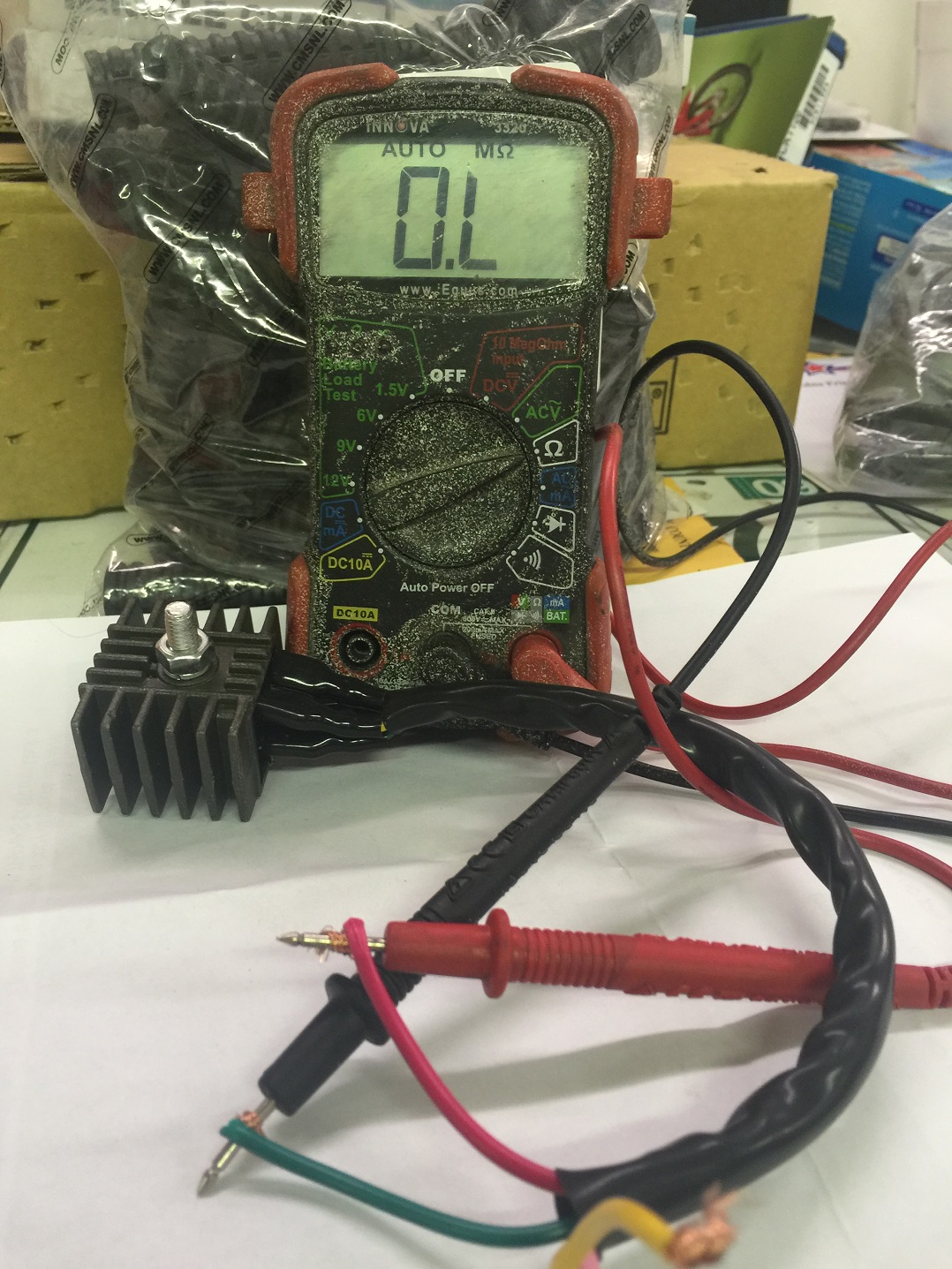

@ POSITIVE TO RED - NEGITIVE TO GREEN (GROUND) --- NO FLOW = GOOD

RECTIFIER TESTING IN THE OUTBACK
