Click to enlarge

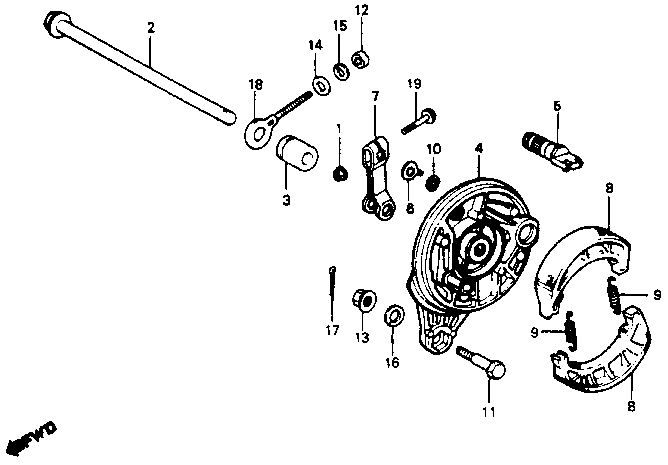

CLICK ON THE IMAGE TO GET THE INDEX NUMBER YOU NEED

*

THEN CLICK BACK AND HIT THE ORDER BUTTON OF THE PART

*

IF THERE IS AN OPTION DROP DOWN BOX, BE SURE TO PICK !!

*

CLICK ON ANY PART FOR MORE DETAILED DESCRIPTION (BE CAREFUL)



@ _ #1


@ *FLANGE_NUT_6MM  94050-06000 1/18A  (214Y)
@ *FLANGE_NUT_6MM 94050-06000 1/18A (214Y)

214Y
@ _#2


@ *REAR_WHEEL_AXLE (ALL_PASSPORT'S)  12MM_X_210MM<P>replaces 42301-041-010 42301-041-020 42301-041-030 42301-121-760 1/22M (256N)
@ *REAR_WHEEL_AXLE (ALL_PASSPORT'S) 12MM_X_210MM

replaces 42301-041-010 42301-041-020 42301-041-030 42301-121-760 1/22M (256N)

256N
@ _#3


@ *COLLAR_REAR_BRAKE ALL_C70'S  (CT90K1_TO_1979) 42313-GBJ-000 1/22M (300A)
@ *COLLAR_REAR_BRAKE ALL_C70'S (CT90K1_TO_1979) 42313-GBJ-000 1/22M (300A)

300A
@ _#4


@ _#5


@ **CAM_BRAKE SEE_DISCRIPTION FITS_MANY_MODELS FRONT_AND_REAR   1/21M (287A)
@ **CAM_BRAKE SEE_DISCRIPTION FITS_MANY_MODELS FRONT_AND_REAR 1/21M (287A)

287A
@ _#6


@ ON ORDER


@ _#7


@ *ARM, RR BRAKE (CT70_1991_TO_94) (C70_1980_&_1981) ARM,RR.BRAKE (SOME_STOCK_REMAINING) 1/19A  (308X) discontinued from Honda (see_#_286Z)
@ *ARM, RR BRAKE (CT70_1991_TO_94) (C70_1980_&_1981) ARM,RR.BRAKE (SOME_STOCK_REMAINING) 1/19A (308X) discontinued from Honda (see_#_286Z)

308X
@ *REAR_BRAKE_ARM CT110_80_TO_86  (CAN WORK FOR C70_1980/81) 43410-086-720 replaces 43410-149-000 1/21M (286Z)
@ *REAR_BRAKE_ARM CT110_80_TO_86 (CAN WORK FOR C70_1980/81) 43410-086-720 replaces 43410-149-000 1/21M (286Z)

286Z
@ _#8


@ *BRAKE SHOE KIT oem HONDA!!  with SPRINGS!! 7/22M (258L)
@ *BRAKE SHOE KIT oem HONDA!! with SPRINGS!! 7/22M (258L)

258L
@ GROOVED BRAKE_SHOE_SET WITH_SPRINGS SEE_FITMENT (S1240)
@ GROOVED BRAKE_SHOE_SET WITH_SPRINGS SEE_FITMENT (S1240)

GROOVED5ASET (S1240)
@ _#9


@ *BRAKE_SHOE_SPRING 45133-028-000 1/22A  (28C)
@ *BRAKE_SHOE_SPRING 45133-028-000 1/22A (28C)

28C
@ _#10


@ *DUST SEAL, BRAKE CAM (Z50R_1979_TO_1985) 45134-250-000 1/21M (296W)
@ *DUST SEAL, BRAKE CAM (Z50R_1979_TO_1985) 45134-250-000 1/21M (296W)

296W
@ _#11


@ *REAR BRAKE PANEL STAY  BOLT 1/18A (81A)
@ *REAR BRAKE PANEL STAY BOLT 1/18A (81A)

81A
@ _#12


@ _6MM NUT 1/22K (B6Z)
@ _6MM NUT 1/22K (B6Z)

NUT B6Z
@ _#13


@ *SPECIAL_8MM_NUT WITH_14MM_HEX OUTSIDE 1/22A (B61J) (359L)
@ *SPECIAL_8MM_NUT WITH_14MM_HEX OUTSIDE 1/22A (B61J) (359L)

B61J (359L)
@ ON ORDER


@ _#14


@ ORIGINAL STYLE 6MM FLAT WASHER ALL_SILVER SMOOTH FINISH MADE_IN_JAPAN (331036)
@ ORIGINAL STYLE 6MM FLAT WASHER ALL_SILVER SMOOTH FINISH MADE_IN_JAPAN (331036)

331036 6MM FLAT
@ *6MM_FLAT_WASHERS OEM_HONDA 94101-06800 1/22A  (B61K) (359M)
@ *6MM_FLAT_WASHERS OEM_HONDA 94101-06800 1/22A (B61K) (359M)

B61K (359M)
@ _#15


@ _ *OEM_HONDA 6MM_LOCK_WASHER 1/20M (B91Z)
@ _ *OEM_HONDA 6MM_LOCK_WASHER 1/20M (B91Z)

B91Z
@ _#16


Click to enlarge
@ *OEM_HONDA_SILVER SPRING_TYPE LOCK_WASHER_8MM 1/14A (B63C)

B63C
@ _#17


@ _#18


@ *CHAIN ADJUSTER  (CT90&C70/ALL RIGHT) CT110/ALL BOTH/SIDES 95014-10100 1/22M  (38N)
@ *CHAIN ADJUSTER (CT90&C70/ALL RIGHT) CT110/ALL BOTH/SIDES 95014-10100 1/22M (38N)

38N
@ _#19


@ *BOLT_FLANGE (6X32) USED_ON_LOTS OF_BRAKE_ARMS 95701-06032-00  1/22A (286Y)
@ *BOLT_FLANGE (6X32) USED_ON_LOTS OF_BRAKE_ARMS 95701-06032-00 1/22A (286Y)

286Y
@ ON ORDER
