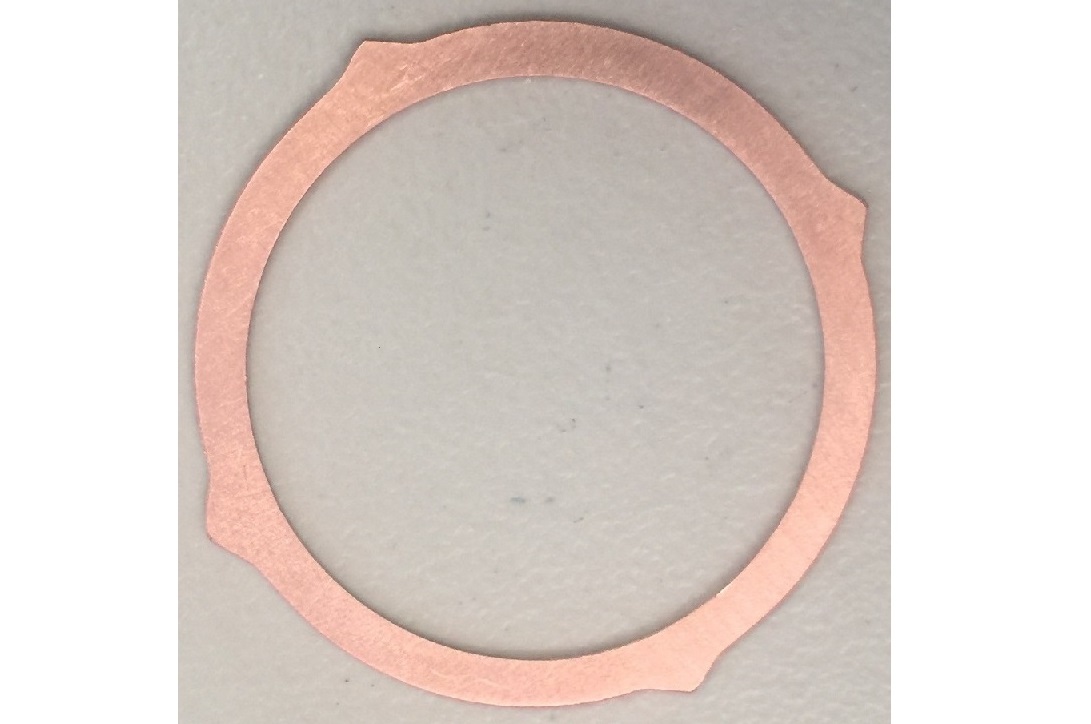

@ NEW TYPE (OR_OLD) OHV 90CC BIG BORE HEAD GASKET 1/21L (335T)

FITS THE FOLLOWING ORIGINAL ENGINES:

CT90'S K5, K6, AND 1976 TO 1979

ALL YEARS OF ST90'S

ATC90'S WITH A ENGINE SERIAL NUMBER'S LARGER THAN 1113934 OR ABOUT 1972 AND NEWER

54.60MM ID 64.20MM OD .032"

THE POINTED GASKET REPLACES THE NOTCHED ONE YES

IF YOU NEEDED TO GET THE OLD TYPE HEAD GASKET JUST GRIND OFF THE POINTS AND BINGO !!

335T

@ BIG_BORE_HEADGASKET OLD TYPE 90CC HEAD GASKET (NO_KNOTCHES) <p>COPPER HEAD GASKET 54.60MM ID 64.60MM OD .032" THICK (313i)  SEE 335T @ BIG_BORE_HEADGASKET OLD TYPE 90CC HEAD GASKET (NO_KNOTCHES)

COPPER HEAD GASKET 54.60MM ID 64.60MM OD .032" THICK (313i) SEE 335T FITS :

ALL S90 CM91 CL90 SL90

CT90K0 TO CT90K4

ATC90'S WITH A ENGINE SERIAL NUMBER'S SMALLER THAN 1113934 OR ABOUT 1971 AND OLDER

313i
Click to enlarge@ NEW TYPE VS OLD TYPE HEAD GASKET = KNOTCHED & ALL ROUND
