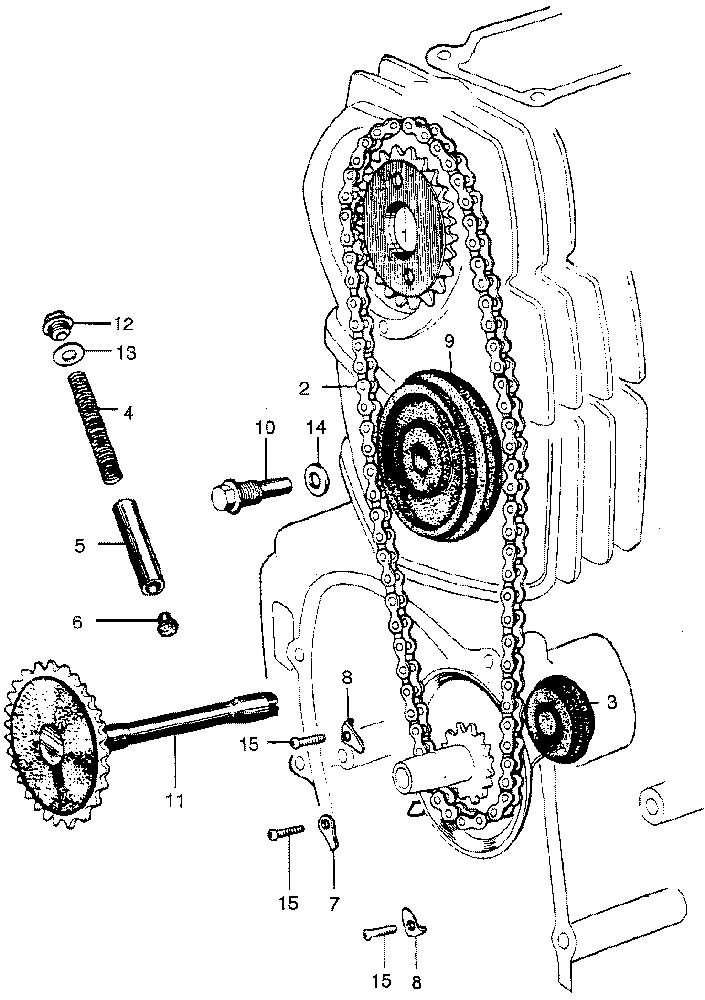

@ HOW TO SET CT110 CAM TIMING CHAIN MARKS SETTINGS



@ with both valves in the shut position  line up the "T" mark on the flywheel with this notch
@ with both valves in the shut position line up the "T" mark on the flywheel with this notch

Click to enlarge
@ with both valves in the shut position line up the "T" mark on the flywheel with this notch

Click to enlarge
@ AND THE SMALL DOT OR CIRCLE OF THE CAM SPROCKET WITH THIS NOTCH IN THE HEAD

Click to enlarge
@ CAM SPROCKET MARK
