MUST ALSO USE THE INCLUDED NEW BRAKE PEDAL
AND THERE WILL BE SOME CUTTING GRINDING DRILLING AND BENDING NEEDED FOR IT TO BE RIGHT
THERE WILL NO LONGER BE SEMI FOLDING DRIVER FOOT RESTS
302H/?/?/?/?/?

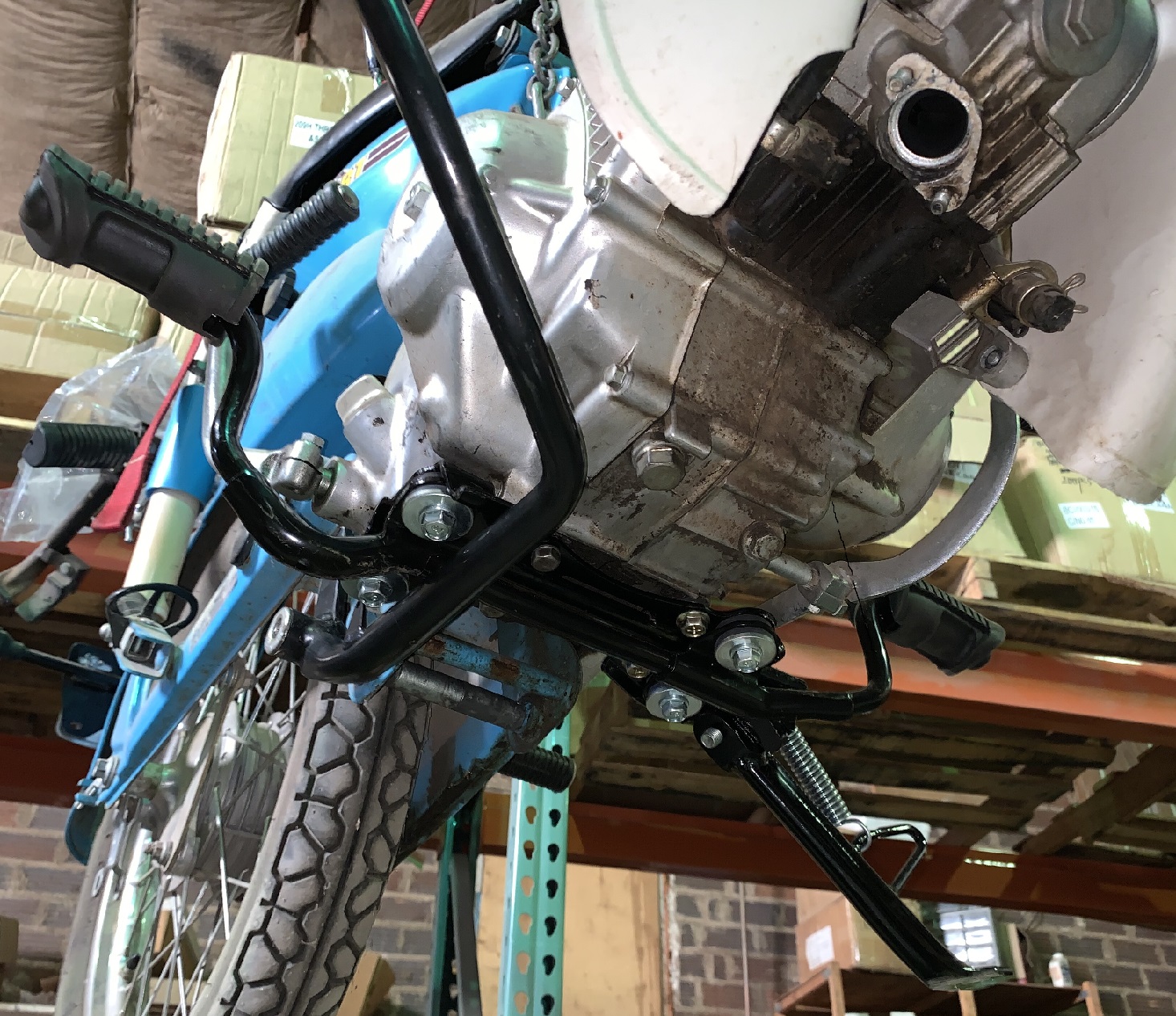

@ ALL THESE PARTS ARE OEM HONDA AND INCLUDED IN THIS PACKAGE
@ LEFT SIDE WITH NEW PEGS
@ ORIGINAL ON TOP
@ SAME 4 BOLT PATTERN AS STOCK WHERE IT BOLTS TO THE BOTTOM OF ENGINE
@ THE DISTANCE IN YELLOW IS LONGER THAN STOCK,, SO YOU MAY WANT TO BEND IT CLOSER (OR NOT)
@ THIS IS #13 AND NOT LUCKY, SOME CUTTING DRILLING BENDING AND GRINDING NEEDED
@ CUT THIS DOWN TO MATCH STOCK (OR_A_BIT_MORE) THEN DRILL HOLE FOR BRAKE ROD
@ MUST GRIND THE PIVOT TUBE TO BE THE SAME AS THE ORIGINAL
@ *OEM HONDA BRAKE PEDAL 46500-KPH-B00 7/21M 336B
336B
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ CLICK ON PICTURE
@ *RUBBER, MAIN STEP MOUNT 50613-KFL-850 (SOLD_EACH) 7/19M (302K)
302K
@ *COLLAR, MAIN STEP MOUNT 50612-KFL-850 (SOLD_EACH) 7/19M (302J)
302J
@ FOOT REST RUBBER
@ **SPRING KICK STAND Z50 K3 THRU 1978 (MOST_COME_SILVER) (PASSPORT_80_81) 95014-72101 95014-72102 1/20A (R2162)
OEM HONDA PART
THIS FITS Z50A SOFT TAIL K3 TO 1978
THIS ALSO FITS THE 1980 AND 1981 C70 PASSPORTS
R2162
@ *SIDE_STAND PIVOT_BOLT CT90K3_TO_1979 ALL CT110'S ALL_CT70'S 1/20M (54D)
THIS SPECIAL SHOLDERED BOLT WORKS AS THE SIDE STAND PIVOT BOLT ON CT90K3'S THRU ALL CT110'S,
BOLT54D
@ *SIDE_STAND SPECIAL LOCK_NUT 10mm CT90K3_TO_79 ALL_CT110 90203-MJ4-000 1/21M (54C)
THIS NUT IS A SPECIAL THIN SELF LOCKING NUT THAT GOES ON THE SIDE STAND PIVOT BOLT. IT WILL FIT CT90K3 THRU ALL CT110'S.
NUT(54C)
@ *BOLT 8MM_X_20MM (SOLD_EACH) 1/20M (309W)
THEY DO HAVE THE "8" ON THE TOP YES
309W
@ *OEM_HONDA_SILVER SPRING_TYPE LOCK_WASHER_8MM 1/14A (B63C)
B63C
@ *BOLT, FLANGE, 8X25 95701-08025-00 7/20M (331S)
331s
