@ STATOR_FLYWHEEL 6 VOLT HAND_CLUTCH MODELS (1003Z) (problems) (NO

PLEASE READ BEFORE YOU BUY AS THERE IS NO RETURNS ON THIS ITEM!!

*

I WILL LIST THE PROBLEMS AS I KNOW THEM

*

1. THE STATOR PLATE ORING GROVE IS TOO SHALLOW

*

2. THE POINTS CAM IS NOT MACHINED AT ALL OR NOT ENOUGH NOT SURE
BUT THE ORIGINAL MAY WORK IF YOU HAVE IT YET

*

3. THE ADVANCER WEIGHTS ARE LOOSE AND NEED SHIMMED TO STAY IN
PLACE WHILE RUNNING

*

4. I THINK THE SPRINGS ARE A BIT TOO STRONG

*

5. THE CONNECTOR ON THE PIGTAIL IN NOT CORRECT FOR MOST US MODELS

*

SEE THE PICTURES LISTED BELOW ON THIS PAGE

THIS CAN REPLACE THE MAGNETO FROM ALL CT70H MODELS AS WELL AS ALL ST70 XL70 AND CL70'S

YOU WILL PROBABLY NEED TO CHANGE THE CONNECTOR TO MATCH YOUR MAIN WIRE HARNESS, SEE THE OPTIONS BELOW AND GET WHAT YOU NEED.

THIS WILL WORK WITH OUR STOCK POINTS TYPE 200003 OR OUR 52MM STROKER CRANK SO YOU WILL HAVE THE MECHANICAL ADVANCER, AND SO YOU CAN USE THE STROKER CRANK ON THE THREE SPEED AUTO'S 50'S AND 70'S

THIS IS AN AFTERMARKET REPLACEMENT STATOR AND FLYWHEEL SET FOR THE HONDA 4 SPEED 70'S IT WILL FIT THE CT70H K0 AND K1, THIS WILL ALSO FIT SL70'S AND XL70'S. THIS FLYWHEEL HAS THE MECHANICAL ADVANCER.

----------------------------------------------------------------------

CONNECTING UP THE WIRES FOR MOST CT70H MODELS...

STATOR___________________TO_______________MAIN HARNESS

YELLOW___________________TO_______________YELLOW

BLACK W/WHITE____________TO_______________BLACK

WHITE_____________________TO_______________GREEN

GREEN W/RED______________TO_______________GREEN W/RED (SOME_DON'T_HAVE)

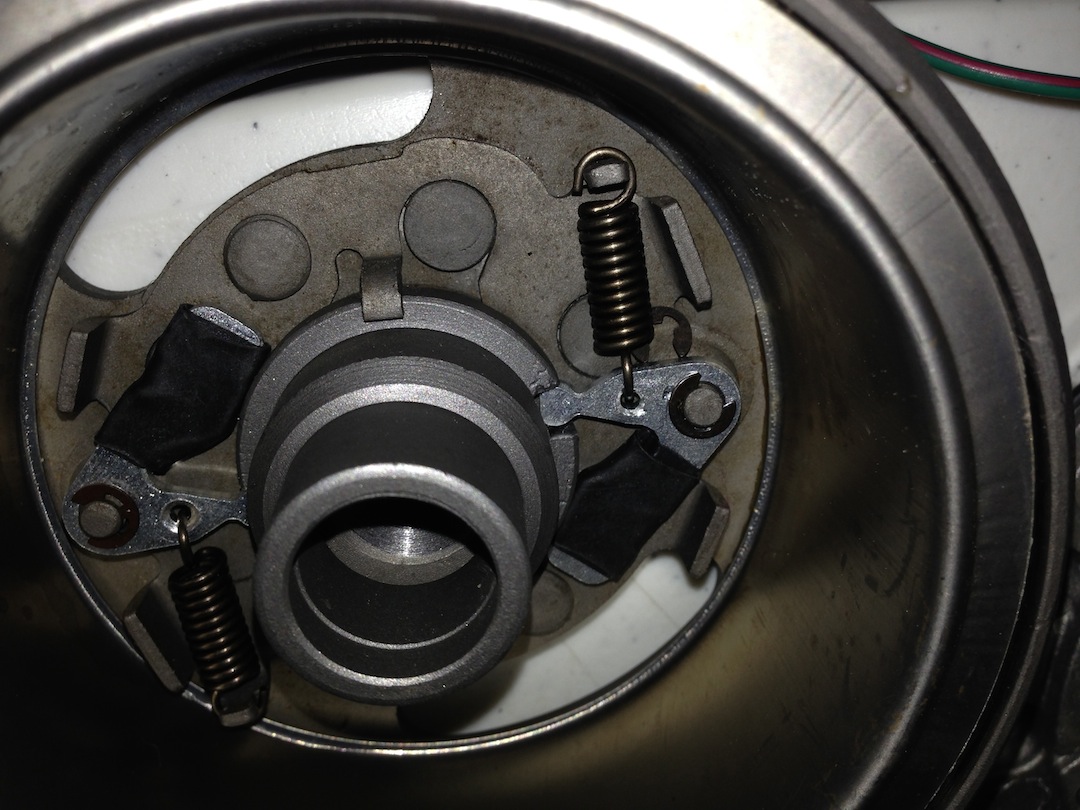

@ WEIGHTS LOOSE AND NEED SHIMMED

@ ORING GROOVE MAKES ORING STICK OUT TOO MUCH

@ POINTS CAM NEEDS TO BE OVAL , IT IS TOO ROUND, MAYBE REPLACE WITH OLD ONE ?

@ INSIDE FLYWHEEL WITH CAM AND WEIGHTS REMOVED, ID IS 88MM

@ OD ON THE WINDING COILS IS 85MM

@ BACK SIDE OF PLATE NEEDS SEALER ON SCREW HOLES

@ GROOVE FOR ORING TOO NARROW
