SOLD EACH

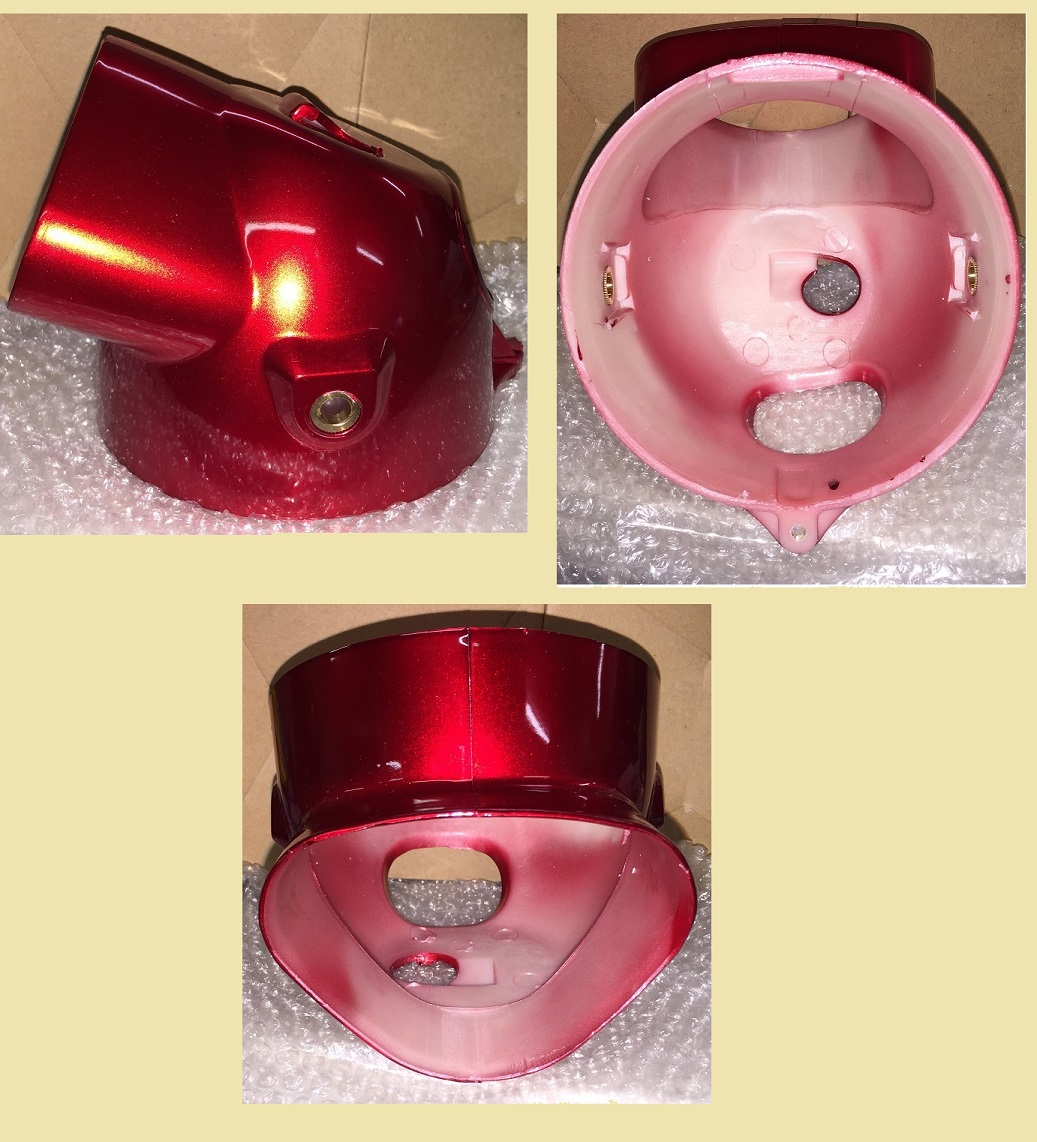

VERY HIGH QUALITY, MADE OF THE SAME MATERIAL AS THE OEM BUCKET. SO THEY ARE VERY PAINTABLE !!

IF YOUR USING AN OEM HEADLIGHT ASSY WITH THIS BUCKET YOU MUST DO A LITTLE BIT OF DREMELING (SEE PICTURE BLEOW)

*

BUT OUR # AFT.051 HEADLIGHT ASSY WILL BOLT RIGHT IN WITH NO MODS NEEDED

THESE ARE FACTORY PAINTED HEADLIGHT BUCKETS

VERY HARD TO TELL THEY ARE NOT NOS

THIS BUCKET FITS THE FOLLOWING MODEL'S

--------------------------------------------------------------------------------

MODELS WITH HONDA PART NUMBERS THAT START OUT LIKE

61301-056-_ _ _ _ _ (THE -056- IS THE COMMON NUMBER) 61301-056-672AB 61301-056-671AB 61301-056-672AB 61301-056-672ZA (replaces 61301-056-671AA) 61301-056-672ZA 61301-056-672XB (replaces 61301-028-020XB) 61301-056-672ZQ (replaces 61301-056-671CN) 61301-056-672ZR (replaces 61301-056-671CQ) 61301-056-672ZQ 61301-056-672ZR 61301-056-671AZ 61301-056-671DD 61301-056-672DF (replaces 61301-056-671DF)

--------------------------------------------------------------------------------

CT70KO AND CT70HKO (ONLY) (APPROX. 1969-1971)

--------------------------------------------------------------------------------

CT90K1 (APPROX. 1969)

--------------------------------------------------------------------------------

ALL S90'S SUPER 90's

--------------------------------------------------------------------------------

SL90'S I THINK ALL MODELS

--------------------------------------------------------------------------------

CL70K0 MODEL ONLY APPROX 1969

--------------------------------------------------------------------------------

CL90's all

-----------------------------

@ _ (CT70K0_HK0) (S90) RUBY_RED HEADLIGHT_BUCKET (SEE_DISCRIPTION) 1/22P (400111W/BUSH) 400111W/BUSH

@ RUBBER SPEEDOMETER_GASKET CT70K0/HK0 CT90K1_S90  (296D) (S1374)@ RUBBER SPEEDOMETER_GASKET CT70K0/HK0 CT90K1_S90 (296D) (S1374)RUBBER SPEEDOMETER GASKET

296D (S1374)
@ e *HL_CASE NUT CT70KO ALL Z50K3to78 61303-105-000 1/22M  (49D)@ e *HL_CASE NUT CT70KO ALL Z50K3to78 61303-105-000 1/22M (49D)
49D
@ e *HEADLIGHT PIVOT BOLT CT70KO 8X25MM 1/20A (49B) @ e *HEADLIGHT PIVOT BOLT CT70KO 8X25MM 1/20A (49B) THIS BOLT used to have AN ALL SMOOTH HEAD. IT IS AN OEM HONDA PART yet, BUT IT NOW HAS THE "8" MARKING ON THE HEAD.

THE BOLT IS STILL ALL SHOW CHROME.

49B
@ e 8mm STAINLESS STEEL FLAT WASHER (833410)@ e 8mm STAINLESS STEEL FLAT WASHER (833410)
833410
@ *PAN_HEAD_SCREW  5MM_X_12MM 5_x_12 93500-05012-0A 1/22M (B47L)@ *PAN_HEAD_SCREW 5MM_X_12MM 5_x_12 93500-05012-0A 1/22M (B47L)5 X 12 MM PAN HEAD SCREW. OEM HONDA WORKS ON LOTS OF DIFFERENT APPLICATIONS. LIKE MUD FLAPS, FENDER CABLE GUIDES, HEAD LIGHT RIMS , HEAT SHIELDS ETC.

B47L
@ e HEADLIGHT ASSY FOR CT70K0_HK0 Z50AK3_THRU_1978 CL70_KO_MODEL<p>(CT90K0_K1_ONLY SMALLER)  (OFF_ROAD_USE_ONLY)  (AFT.051) (S1292)@ e HEADLIGHT ASSY FOR CT70K0_HK0 Z50AK3_THRU_1978 CL70_KO_MODEL

(CT90K0_K1_ONLY SMALLER) (OFF_ROAD_USE_ONLY) (AFT.051) (S1292)GLASS NOT PLASTIC IN A GREAT HD STEEL CHROME RIM

6V 15W/15W BULB COMES STANDARD SAME AS MOST ORIGINAL HONDA UNITS DID

FOR OFF ROAD USE ONLY--NOT DOT APPROVED (;

THIS IS THE SAME AS OUR (051) HONDA LIGHT, ONLY AFTERMARKET IT TAKES THE SAME BULB AND PIG TAIL

ONE OTHER THING THE BLUE WIRE NOW HAS A 2 FEMALE CONNECTOR SAME AS STOCK

ONE GOES TO HIGH BEAM INDICATOR & ONE GOES TO HEAD LIGHT BULB FOR BIKES THAT HAD THEM.

THIS FITS INTO THE FOLLOWING UNITS WHICH ARE ABOUT 5" ID BUCKETS

--------------------------------------------------------------------------------

CT70KO AND CT70HKO (ONLY) (APPROX. 1969-1971)

--------------------------------------------------------------------------------

CT90K1 (APPROX. 1969)

--------------------------------------------------------------------------------

ALL S90'S SUPER 90's

--------------------------------------------------------------------------------

SL90'S I THINK ALL MODELS

--------------------------------------------------------------------------------

CL70K0 MODEL ONLY APPROX 1969

--------------------------------------------------------------------------------

CL90's all

-----------------------------

ALL CT90K0 CT200 CM91 C200

----------------------------

AFT.051 (S1292)
