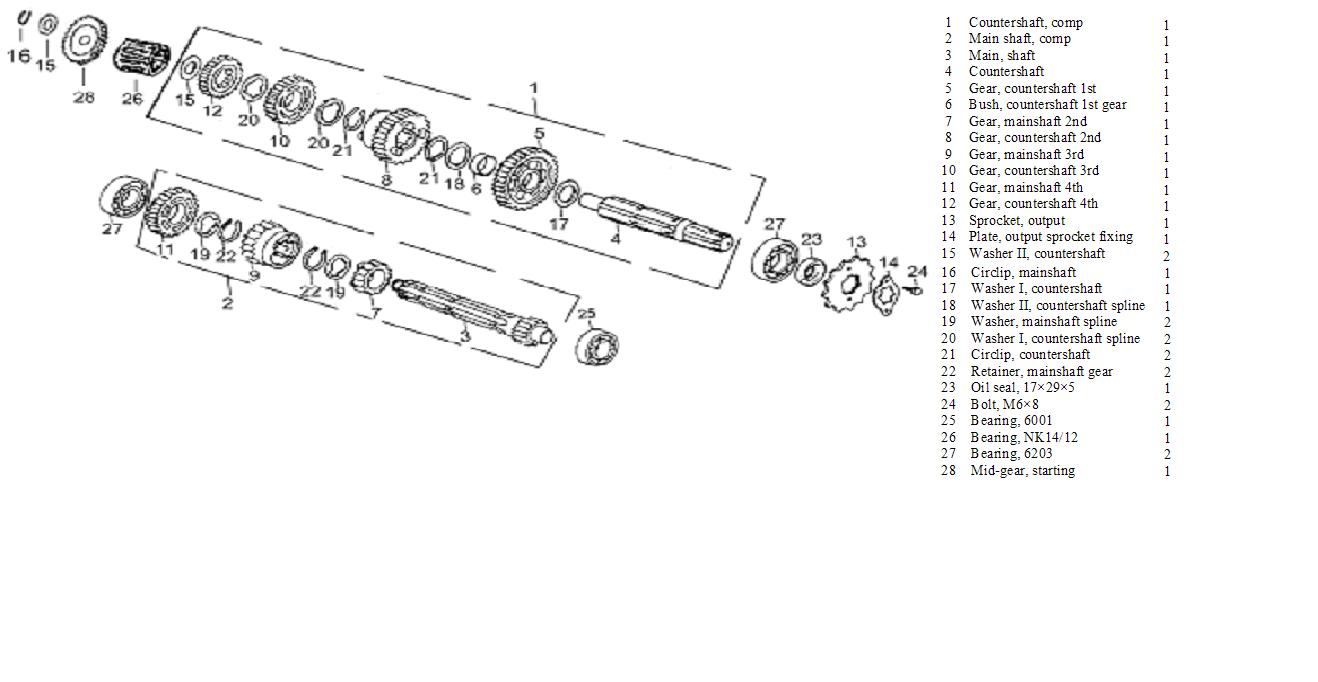

Click to enlarge

CLICK ON THE IMAGE TO GET THE INDEX NUMBER YOU NEED

*

THEN CLICK BACK AND HIT THE ORDER BUTTON OF THE PART

*

IF THERE IS AN OPTION DROP DOWN BOX, BE SURE TO PICK !!

*

CLICK ON ANY PART FOR MORE DETAILED DISCRIPTION (BE CAREFUL)

THESE GEARS AND SHAFTS SHOULD WORK IN MOST ALL 120CC, 138CC, 140CC AND 150CC LIFAN ENGINES, BUT IF POSSABLE YOU SHOULD MEASURE WHAT YOU HAVE NOW AND COMPARE.

SOME OF THE EARLY 120'S (AND_125'S_W/57MM_STROKE) HAD A DIFFERENT COUNTERSHAFT, IT WAS ONLY 12MM OD ON THE RIGHT SIDE INSTEAD OF 14MM. THESE ARE THE ONES WITH A BALL BEARING ON THE RIGHT SIDE NOT THE NEEDLE BEARING.

THESE GEARS/SHAFTS ARE NOT FOR THE LIFAN 125CC THAT HAD THE 54MM BORE AND 54MM STROKE !!



@ _ #1


@ COUNTERSHAFT ASSY   (23700/150CC) (N/M/SHELF23700) S1087
@ COUNTERSHAFT ASSY (23700/150CC) (N/M/SHELF23700) S1087

S1087
@ _#2


@ MAIN SHAFT COMPLETE  (23600/150CC) (N/M/SHELF23600) (S1088)
@ MAIN SHAFT COMPLETE (23600/150CC) (N/M/SHELF23600) (S1088)

S1088
@ _#3


@ MAIN SHAFT  6 1/8" LONG (23611/150CC) (N/M/SHELF23600)
@ MAIN SHAFT 6 1/8" LONG (23611/150CC) (N/M/SHELF23600)

23611/150CC
@ _#4


@ COUNTERSHAFT  (23771/150CC)    (N/M/SHELF23700)
@ COUNTERSHAFT (23771/150CC) (N/M/SHELF23700)

23771/150CC
@ _#5


@ 1ST GEAR COUNTERSHAFT (23711/150CC) (N/M/SHELF23700)
@ 1ST GEAR COUNTERSHAFT (23711/150CC) (N/M/SHELF23700)

23711/150CC
@ _#6


@ BUSHING FOR 1ST GEAR COUNTERSHAFT  (23712/150CC)  (N/M/SHELF23700)
@ BUSHING FOR 1ST GEAR COUNTERSHAFT (23712/150CC) (N/M/SHELF23700)

23712/150CC
@ _#7


@ 2ND GEAR MAIN SHAFT  (23621/150CC) (N/M/SHELF23600)
@ 2ND GEAR MAIN SHAFT (23621/150CC) (N/M/SHELF23600)

23621/150CC
@ _#8


@ 2ND GEAR COUNTERSHAFT  (23721/150CC) (N/M/SHELF23700)
@ 2ND GEAR COUNTERSHAFT (23721/150CC) (N/M/SHELF23700)

23721/150CC
@ _#9


@ 3RD GEAR MAIN SHAFT (23631/150CC) (N/M/SHELF23600)
@ 3RD GEAR MAIN SHAFT (23631/150CC) (N/M/SHELF23600)

23631/150CC
@ _#10


@ 3RD GEAR COUNTERSHAFT  (23731/150CC) (N/M/SHELF23700)
@ 3RD GEAR COUNTERSHAFT (23731/150CC) (N/M/SHELF23700)

23731/150CC
@ _#11


@ 4TH GEAR MAIN SHAFT  (23641/150CC) (N/M/SHELF23600)
@ 4TH GEAR MAIN SHAFT (23641/150CC) (N/M/SHELF23600)

23641/150CC
@ _#12


@ 4TH GEAR COUNTERSHAFT (23741/150CC) (N/M/SHELF23700)
@ 4TH GEAR COUNTERSHAFT (23741/150CC) (N/M/SHELF23700)

23741/150CC
@ _#13


@ _#14


@ _#15


@ WASHER  (23774/150CC) (NWSHELF23700) (N/M/SHELF23700)
@ WASHER (23774/150CC) (NWSHELF23700) (N/M/SHELF23700)

23774/150CC
@ _#16


@ _#17


@ WASHER 17mm  (23773/150CC) (N/M/SHELF23700)
@ WASHER 17mm (23773/150CC) (N/M/SHELF23700)

23773/150CC
@ _#18


@ WASHER 20mm & wider (23794/150CC) (N/M/SHELF23700)
@ WASHER 20mm & wider (23794/150CC) (N/M/SHELF23700)

23794/150CC
@ _#19


@ WASHER INSIDE SPLINE  (23675/150CC) (N/M/SHELF23600)
@ WASHER INSIDE SPLINE (23675/150CC) (N/M/SHELF23600)

23675/150CC
@ _#20


@ WASHER INSIDE SPLINE  20mm (23775/150CC) (N/M/SHELF23700)
@ WASHER INSIDE SPLINE 20mm (23775/150CC) (N/M/SHELF23700)

23775/150CC
@ _#21


@ WASHER, SPRING 20mm  (23772/150CC) (N/M/SHELF23700)
@ WASHER, SPRING 20mm (23772/150CC) (N/M/SHELF23700)

23772/150CC
@ _#22


@ WASHER, SPRING  (23673/150CC) (N/M/SHELF23600)
@ WASHER, SPRING (23673/150CC) (N/M/SHELF23600)

23673/150CC
@ _#23


@ *SINGLE_OEM_SEALS 70'S_AND_50'S (ATC70_TRX90) 7/20AM   (SINGLE/SEALS)
@ *SINGLE_OEM_SEALS 70'S_AND_50'S (ATC70_TRX90) 7/20AM (SINGLE/SEALS)

SINGLE/SEALSPICK_YOUR_SEAL:
@ _#24


@ _#25


@ _#26


@ _#27


@ _#28


@ LIFAN_150CC KICK_START CONVEYING_GEAR 30_TOOTH 14MM_CENTER (309D)
@ LIFAN_150CC KICK_START CONVEYING_GEAR 30_TOOTH 14MM_CENTER (309D)

309D
