53mm center to center of mounting holes

*

12.75mm thick where the screws go thru

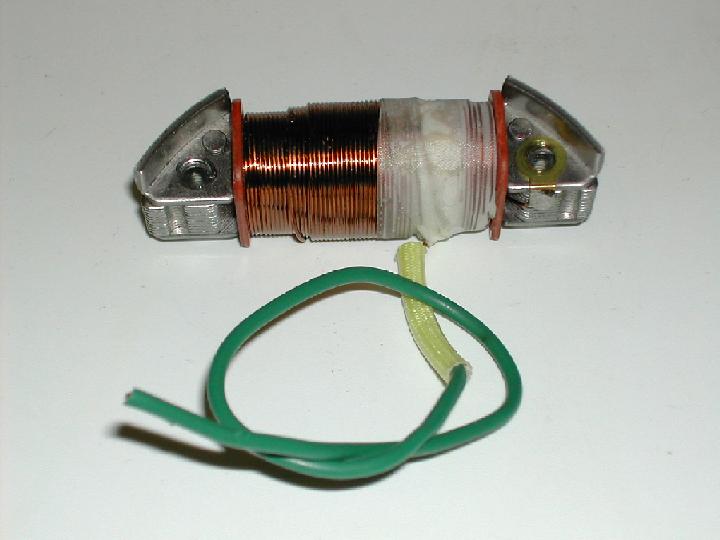

JUST SCREW THIS COIL IN WHERE THE BAD LIGHTING COIL WAS AND SPLICE THE GREEN WIRE INTO THE WIRE GOING TO THE STATOR'S MAIN CONNECTOR, AND YOU CAN SEE IN THE DARK AGAIN. THIS REPLACES HONDA NUMBER 31631-045-672 .

*(ALL ATC70'S) Z50A_K3 THRU_1978 OEM HONDA STATOR LIGHTING COIL (91B) EXED SORRY DISCONTINUED 91B
