SO YOUR 1980 OR 1981 C70 PASSPORT WON'T ELECTRIC START HUH ???

OK

SO THE ROOT PROBLEM IS (95%) A BAD GROUND TO THE STARTER SOLENOID PRIMARY COIL, YES GROUND.

THE SOLENOID PRIMARY SIDE (THE_TWO_SMALL_WIRES) HAS A FULL TIME 6 VOLT HOT WIRE GOING TO IT WHEN THE KEY SWITCH IS TURNED TO THE ON POSITION.

WHEN THE GROUND SIDE MAKES A GOOD GROUND THE SOLENOID DOES IT'S THING AND PUTS EVERY BIT OF 6V POWER THE BATTERY HAS TO THE STARTER THROUGH THE BIG RED + POSITIVE WIRE.

SO LETS TRACE THE GROUND BACK TO THE BATTERY, THERE ARE A LOT OF "WEAK_LINKS".

I AM ASSUMING YOU HAVE A GOOD FULLY CHARGED 6V (6_VOLT) BATTERY !! GET ONE IF NOT (:

MAKE SURE THE BATTERY TERMINALS ARE CLEAN AND MAKE SURE THE GROUND (-) CABLE IS MAKING GOOD GROUND TO THE FRAME, ESPECIALLY IF YOU HAD YOUR FRAME PAINTED OR EVEN MORE, POWER COATED.

YOU MAY WANT TO JUMP TO THE LAST 2 ITEMS AT THE BOTTOM OF THE PAGE FIRST AND TEST THE SOLENOID AND STARTER TO ELIMINATE THEM

OK

WORKING BACKWARDS FROM THE SOLENOID

=======================================================================

WEAK_LINK_#1

THE STARTER BUTTON BRASS CONTACTS.

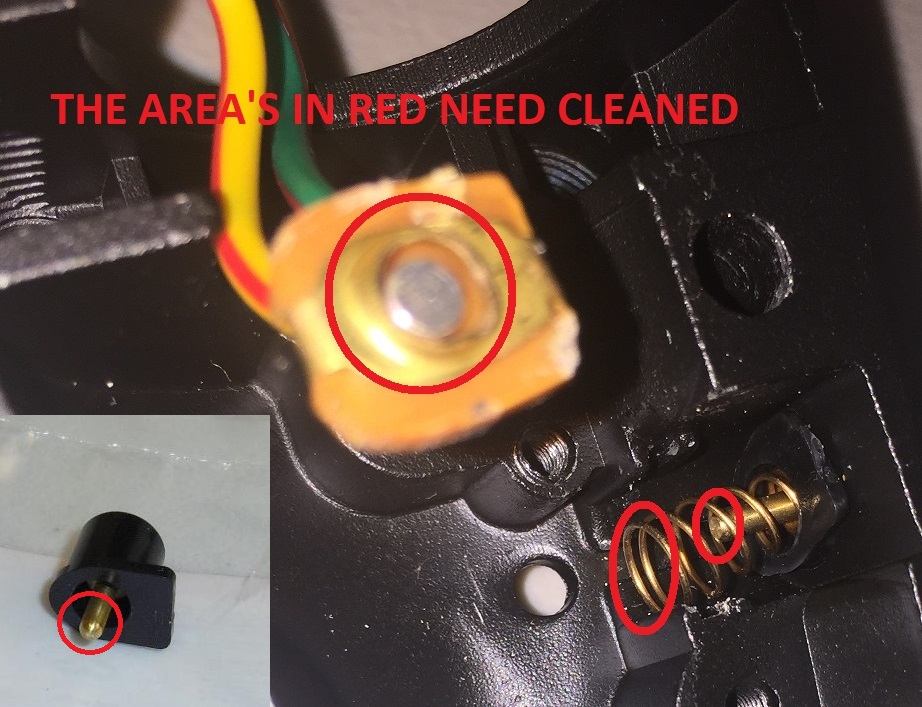

Click to enlargeWEAK_LINK_#1 = CLEAN STARTER BUTTON - YOU DON'T HAVE TO DISASSEMBLE AS MUCH AS THE PICTURE SHOWS
========================================================================

WEAK LINK #2

Click to enlargeNEUTRAL CONTACT LOCATED ABOVE THE FRONT DRIVE SPROCKET

SEE REPLACEMENTS BELOW AND HOW TO MAKE THEM WORK

93_TO_05_TRX90'S REV_LIMITER/NEUTRAL CONTACT SWITCH (C70'S_READ) 7/17M (256I)93_TO_05_TRX90'S REV_LIMITER/NEUTRAL CONTACT SWITCH (C70'S_READ) 7/17M (256I)ON THE TRX90'S THIS WORKS FOR EITHER, REV_LIMITER SWITCH OR NEUTRAL SWITCH

THE CLOSEST SUB FOR THE C70 PASSPORTS WE CAN GET NOW.

THIS IS WHAT ONE GOOD CUSTOMER SAID ABOUT THE TRX SENDING UNIT.....

"I just rec'd the 93-95 TRX Revl neutral switchs that I ordered for my 81 C70 and after taking some measurements, i installed it in the bike and it works fine. I didn't have to do the mods that you suggested. Just thought I'd let you know. It may stop working once it wears in, because its very close."

Thanks, JOHN F.

256I$7.38
Click to enlargeCLICK TO SEE COMPARISON PASSPORT CONTACT SWITCH TO THE REDish TRX90 SWITCH
Click to enlargeMODS NEEDED TO WORK ON C70'S.... THE YELLOW AREA UNDER LIP MUST BE GROUND DOWN TO ALLOW FOR SOME NOT ALL OF THE "BLUE MARKED" LENGTH DIFFERENCE (CAN_REPLACE_OEM#_35600-174-671)

DON'T GRIND OFF TOO MUCH READ ABOUT 256F HOLDING PLATE BELOW

265E IS A 2ND CHOICE IF WE ARE OUT OF THE RED TRX90 CONTACTS - IT WORKS JUST AS GOOD
*NEUTRAL_LIGHT SWITCH/CONTACT CT90_ST90_S90 [(CAN_B_MODIFIED) (TO_WORK_4_C70'S)] 1/14M (256E) *NEUTRAL_LIGHT SWITCH/CONTACT CT90_ST90_S90 [(CAN_B_MODIFIED) (TO_WORK_4_C70'S)] 1/14M (256E) CLICK ON THE PICTURE BELOW TO SEE ALL APPLICATIONS.

WE HAVE FOUND THIS IS 100% CORRECT FOR ALL THE LISTED MODELS IN THE PICTURE TO THE LEFT AND THE CLOSEST SUB FOR THE C70 PASSPORTS (BETTER_THAN_THE_TRX90'S) WE THINK ?

*NEUTRAL_LIGHT SWITCH/CONTACT CT90_ST90_S90 [(CAN_B_MODIFIED) (TO_WORK_4_C70'S)] 1/14M (256E) 256E$11.95
Click to enlargeCLICK TO SEE 256E BLACK COMPARISON WITH PASSPORT CONTACT SWITCH
*NEUTRAL CONTACT/SWITCH HOLDING_PLATE 1/17M (256F)*NEUTRAL CONTACT/SWITCH HOLDING_PLATE 1/17M (256F)(C70_80/81)_(I_THINK_THIS_CAN_WORK_LIKE_A_SPRING_TO_KEEP_PRESSURE_ON_THE_NEW_TYPE_CONTACT AGAINST THE SHIFT DRUM CONTACT PAD)

CLICK ON THE PICTURE TO THE LEFT TO SEE ALL THE MODELS THIS FITS

*NEUTRAL CONTACT/SWITCH HOLDING_PLATE 1/17M (256F) 256F$2.09
========================================================================

WEAK LINK #3

Click to enlargeSHIFT DRUM CONTACT SPOT/PAD/RAMP (C70_80/81) CLEAN YOUR DRUM TAB INSTRUCTIONS
Click to enlarge(C70_80/81) CLICK TO SEE AREA WHERE DRUM NEEDS TO BE CLEANED FOR BETTER CONTACT
========================================================================

WEAK LINK #4

Click to enlargeCHECK ALL THE SMALL WIRE CONNECTIONS -- SEE THE DIAGRAM WHERE THEY ARE AND THE COLOR
========================================================================

SO IF ALL 4 OF THE ABOVE WEAK LINK ISSUES ARE RESOLVED (AND_STILL_NOT_STARTING) THEN TEST THE SOLENOID --- WHEN THE START BUTTON IS PUSHED YOU SHOULD GET A CLICK NOISE AND VOLTAGE BETWEEN THE TWO STUD BOLTS SHOULD GO FROM NO VOLTAGE TO 6+ VOLTS OF DC CURRENT

*OEM HONDA STARTER SOLENOID 6 VOLT C70 1980 AND 1981 (69J) exed sorry discontinued*OEM HONDA STARTER SOLENOID 6 VOLT C70 1980 AND 1981 (69J) exed sorry discontinued
69J$92.95
6V STARTER_RELAY C70 WITH 6V BATTERIES ANY_6V_BIKE (STARTER_6V)6V STARTER_RELAY C70 WITH 6V BATTERIES ANY_6V_BIKE (STARTER_6V)
STARTER_6V$19.99
========================================================================

SOLENOID LOOKS GOOD THEN TEST THE STARTER --- USE AN OLD SCREWDRIVER AND SHORT THE TWO SOLINOID TERMINAL DIRECTLY WITH EACH OTHER -- 100% CONNECTION -- THE STARTER SHOULD SPIN UNTILL YOU RELEASE THE SCREWDRIVER -- IF NOT THE STARTER NEEDS REBUILT

*STARTER BRUSH SET 1980 AND 1981 PASSPORT 7/17M (254U)*STARTER BRUSH SET 1980 AND 1981 PASSPORT 7/17M (254U)oem honda parts

254U$38.99
