THESE ARE FROM THE EUROPEAN DAX MODELS OF CT70'S

THEY CAN BE PUT ON FRONT AND REAR OF MOST CT70'S

YOU MAY/WILL HAVE TO MAKE SOME MODS ??

DON'T BUY THESE THINKING YOU CAN BOLT THEM ON IN 5 MIN...

*

THEY ARE ABOUT 6" WIDE AND 4 1/2" LONG,, WITH THE SAME CURVES AS THE STOCK FENDERS

THESE FLAPS LOOK GREAT ON THE CT70'S AND WILL KEEP MUD AND WATER OFF YOUR ENGINE AND "YOU" !! , BUT,, YOU WILL HAVE TO DRILL SOME HOLES AND DEAL WITH A SUPPORT BRACE ON THE BOTTOM OF THE REAR FENDER (see_bottom_picture),, BUT OH MAN IT WILL BE WORTH THE EXTRA EFFORT

I BELEAVE THE CORRECT ORDER IS THE STAY AND MUDFLAP BELOW THE FENDER THEN ON TOP IS THE 3 SCREW/WASHERS POINTING DOWN

FOR EACH FENDER YOU WILL NEED ONE FLAP ONE STAY (now discontinued sorry) AND 3 SCREW/WASHERS (263U)

@ *MUD_GUARD OEM_HONDA_PART BUT_SOLD_AS A_TRICK_ADD_ON FOR_CT70'S FRONT/REAR 61105-126-920 1/22M (263G) 263G

Click to enlargeclick to enlarge and see the flaps in use
Click to enlargeclick to enlarge and see the flaps in use
@ *STAY_BOTTOM, FRONT AND REAR MUD GUARD (61106-126-920) EXED SORRY DISCONTINUED@ *STAY_BOTTOM, FRONT AND REAR MUD GUARD (61106-126-920) EXED SORRY DISCONTINUEDTHIS STAY IS TO BE USED WITH OUR 260G MUD FLAP

THESE FLAPS LOOK GREAT ON THE CT70'S , BUT YOU WILL HAVE TO DRILL SOME HOLES AND DEAL WITH A SUPPORT BRACE ON THE BOTTOM OF THE REAR FENDER,, BUT OH MAN IT WILL BE WORTH THE EXTRA EFFORT

@ *SCREW_WASHER 6X10mm (SOLD_EACH) 93891-06010-00 1/22A (263u) @ *SCREW_WASHER 6X10mm (SOLD_EACH) 93891-06010-00 1/22A (263u) SCREW WASHER 6X10mm THESE ARE MAINLY FOR OUR 263G MUD GUARDS,, BUT ARE VERY SHINY AND WILL FIT MOST ANYWHERE YOU NEED A 6MM SCREW

263u

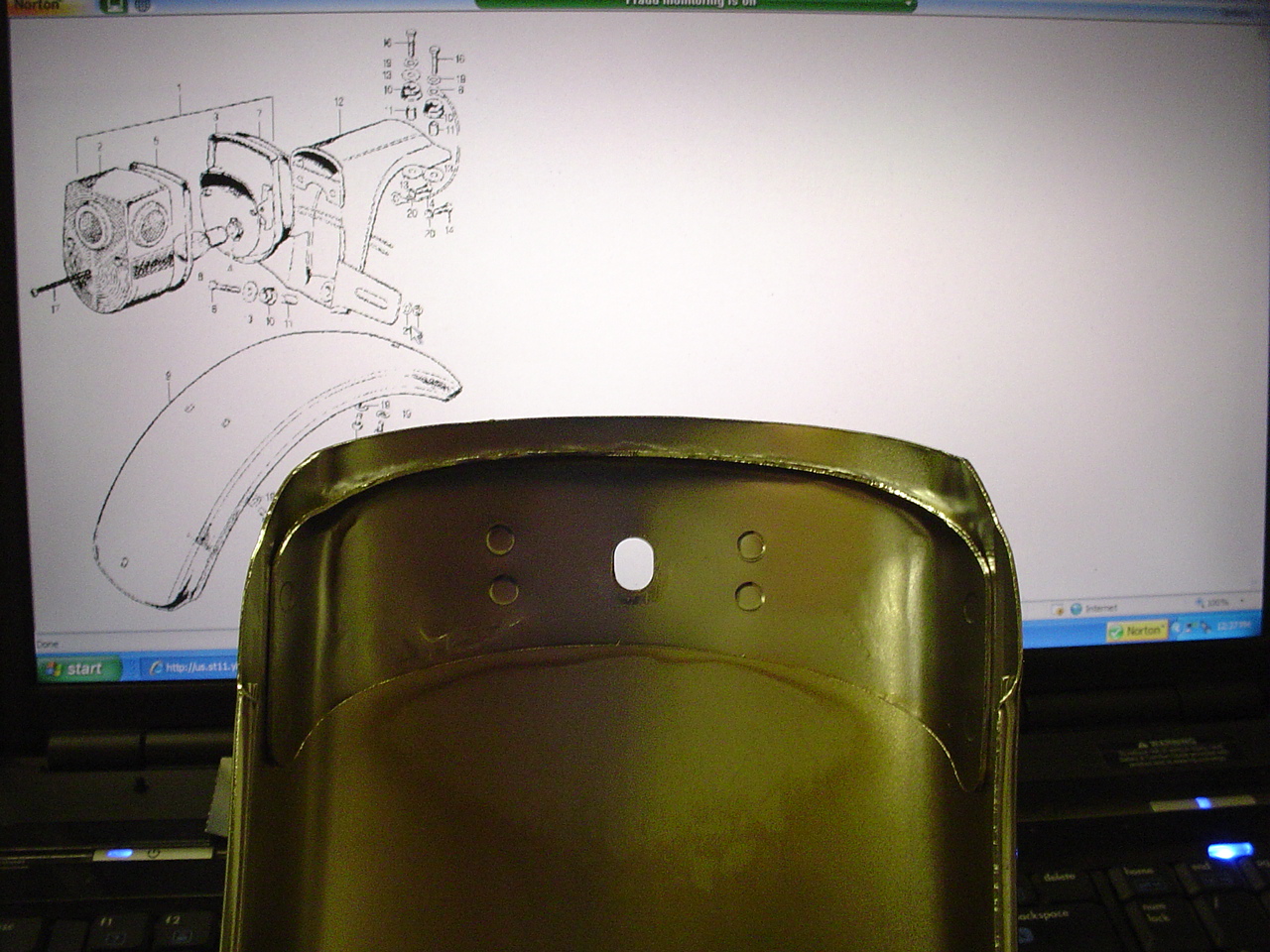

Click to enlargeCLICK TO SEE WHERE THE SUPPORT BRACE IS THAT YOU MAY/WILL NEED TO DEAL WITH IN ORDER TO INSTALL THE LOWER BACKING PLATE
