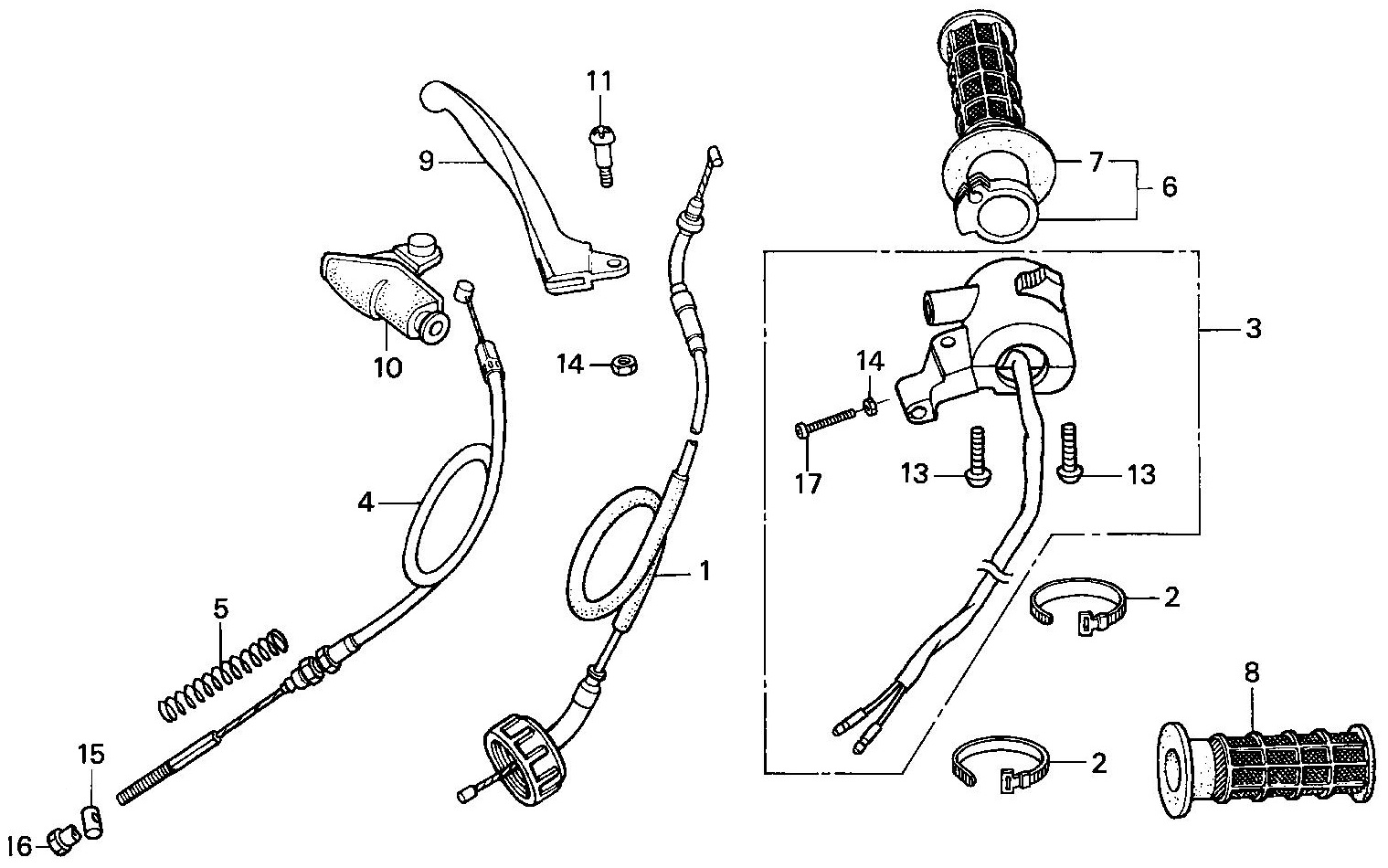

Click to enlarge

CLICK ON THE IMAGE TO GET THE INDEX NUMBER YOU NEED * THEN CLICK BACK AND HIT THE ORDER BUTTON OF THE PART * IF THERE IS AN OPTION DROP DOWN BOX, BE SURE TO PICK !! * CLICK ON ANY PART FOR MORE DETAILED DESCRIPTION (BE CAREFUL)



@ _ #1


@ *THROTTLE CABLE SET (ALL_XR50) 17920-GEL-305 1/19 (74E)
@ *THROTTLE CABLE SET (ALL_XR50) 17920-GEL-305 1/19 (74E)

74E
@ _#2


@ *BAND STRAP (SOLD_EACH) FITS TONS OF HONDA'S band b1, wire 32161-404-000 1/22A (R2191)
@ *BAND STRAP (SOLD_EACH) FITS TONS OF HONDA'S band b1, wire 32161-404-000 1/22A (R2191)

R2191
@ _#3


@ *OEM HONDA KILL SWITCH (ALL_XR50'S) 35013-GEL-700 1/19 (51H)
@ *OEM HONDA KILL SWITCH (ALL_XR50'S) 35013-GEL-700 1/19 (51H)

51H
@ _#4


NO LONGER AVAILABLE FROM DRATV @ *FRONT BRAKE CABLE (ALL_XR50) 45450-GEL-701 7/21M (277Z)
NO LONGER AVAILABLE FROM DRATV @ *FRONT BRAKE CABLE (ALL_XR50) 45450-GEL-701 7/21M (277Z)

277Z
@ FRONT BRAKE CABLE CRF50 2004-2012 45450-GEL-J00 7/21A (339K)
@ FRONT BRAKE CABLE CRF50 2004-2012 45450-GEL-J00 7/21A (339K)

339K
@ _#5


@ *FRONT_BRAKE CABLE_SPRING XR50_CRF50 45454-181-960 1/21A (272S)
@ *FRONT_BRAKE CABLE_SPRING XR50_CRF50 45454-181-960 1/21A (272S)

272s
@ _#6


@ *THROTTLE PIPE AND GRIP (XR50_ALL) 53140-GEL-700 1/19A (325C)
@ *THROTTLE PIPE AND GRIP (XR50_ALL) 53140-GEL-700 1/19A (325C)

325C
@ _#7


@ _#8


@ * GRIP, R. HANDLE FITS XR50R 2000 TO 2003 53165-GF8-000 1/22M (340K)
@ * GRIP, R. HANDLE FITS XR50R 2000 TO 2003 53165-GF8-000 1/22M (340K)

340K
@ _#9


@ **PASSPORT_ALL BRAKE_LEVER (CT70_80_TO_82) (Z50R_86_TO_99) 53175-GEL-305 superseded by 53175-GGA-305 1/21M (63P) PIC?
@ **PASSPORT_ALL BRAKE_LEVER (CT70_80_TO_82) (Z50R_86_TO_99) 53175-GEL-305 superseded by 53175-GGA-305 1/21M (63P) PIC?

63P
@ _#10


@ *RIGHT LEVER COVER Z50R XR50 CRF50 1987 TO 2012 (SOLD_EACH) 53176-170-700 1/20A (R2117)
@ *RIGHT LEVER COVER Z50R XR50 CRF50 1987 TO 2012 (SOLD_EACH) 53176-170-700 1/20A (R2117)

R2117
@ _#11


@ *#11_LEVER PIVOT_SCREW XR50_CRF50 C70_81_TO_83 Z50R_86_TO_99 90115-170-700 1/22M (64D)
@ *#11_LEVER PIVOT_SCREW XR50_CRF50 C70_81_TO_83 Z50R_86_TO_99 90115-170-700 1/22M (64D)

64D
@ _#13


@ *5MM X 20MM PAN HEAD SCREW 93500-05020-0A 7/22W (204F)
@ *5MM X 20MM PAN HEAD SCREW 93500-05020-0A 7/22W (204F)

204F
@ _#14


@ *5mm_HEX_NUT MANY_HONDA APPLICATIONS 94001-05000-0S 1/22M (BXR5_203) (xr5203)
@ *5mm_HEX_NUT MANY_HONDA APPLICATIONS 94001-05000-0S 1/22M (BXR5_203) (xr5203)

BXR5-203
@ _#15


@ *GUIDE BRAKE ROD/CABLE 95015-31001 1/22A (B38B)
@ *GUIDE BRAKE ROD/CABLE 95015-31001 1/22A (B38B)

B38B
@ _#16


@ *BRAKE ROD/CABLE ADJUSTING NUT 95015-41000 1/22A (B38C) (357F)
@ *BRAKE ROD/CABLE ADJUSTING NUT 95015-41000 1/22A (B38C) (357F)

B38C (357F)
@ _#17
