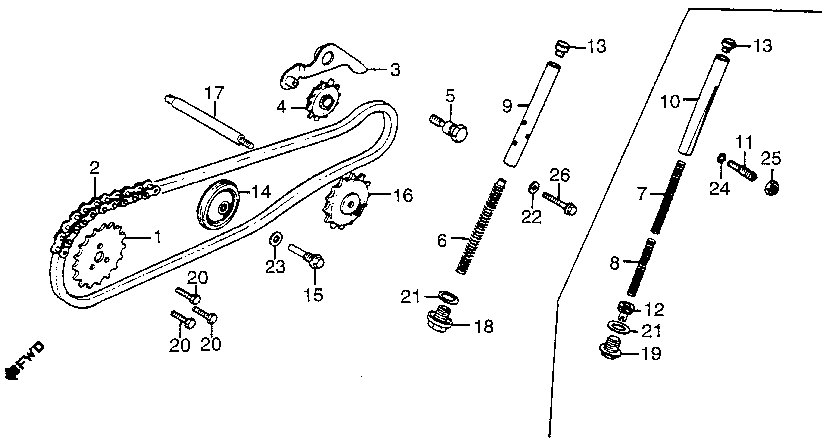

Click to enlarge

CLICK ON THE IMAGE TO GET THE INDEX NUMBER YOU NEED * THEN CLICK BACK AND HIT THE ORDER BUTTON OF THE PART * IF THERE IS AN OPTION DROP DOWN BOX, BE SURE TO PICK !! * CLICK ON ANY PART FOR MORE DETAILED DESCRIPTION (BE CAREFUL)

BE VERY CARFUL AS THIS PAGE HAS PARTS FOR 2 DIFFERENT TYPES



@ e 4 PIECES TIMING GEAR SET CAM CHAIN 82L XR50/70 CRF50 CRF70<p>LIFAN 50CC 70CC ATC70 TRX70 Z50 CT70 SL/XL/CL70 (1P47FMD-TIMING-GEAR-SET)(S1303)
@ e 4 PIECES TIMING GEAR SET CAM CHAIN 82L XR50/70 CRF50 CRF70

LIFAN 50CC 70CC ATC70 TRX70 Z50 CT70 SL/XL/CL70 (1P47FMD-TIMING-GEAR-SET)(S1303)

1P47FMD-A-TIMING-GEAR-SET (S1303)
@ _ #1


NO LONGER AVAILABLE FROM DRATV @ NEW TAKEOFF AFTERMARKET CAM_SPROCKET 28_TOOTH ALL_CT70_TO_1982 ALL_ATC70'S ALL_Z50_TO_87 ALL_SL_XL_CL70'S (255K) temp out of stock
NO LONGER AVAILABLE FROM DRATV @ NEW TAKEOFF AFTERMARKET CAM_SPROCKET 28_TOOTH ALL_CT70_TO_1982 ALL_ATC70'S ALL_Z50_TO_87 ALL_SL_XL_CL70'S (255K) temp out of stock

255K
@ _#2


@ CAM/TIMING_CHAIN DID_82_LINKS MOST_ALL 50_&_70CC_ENGINES REPLACES OEM# 14401-028-003 1/22W (7F)
@ CAM/TIMING_CHAIN DID_82_LINKS MOST_ALL 50_&_70CC_ENGINES REPLACES OEM# 14401-028-003 1/22W (7F)

7F
@ 82 LINK SUPER HARDENED RIVOTED ENDLESS CAM CHAIN #25H 1/16S (AFT7F) temp out of stock
@ 82 LINK SUPER HARDENED RIVOTED ENDLESS CAM CHAIN #25H 1/16S (AFT7F) temp out of stock

AFT7F
@ _#3


@ _#4


@ **CAM CHAIN TENSIONER ROLLER CT70 Z50 PASSPORT 1/20M (R2028))
@ **CAM CHAIN TENSIONER ROLLER CT70 Z50 PASSPORT 1/20M (R2028))

R2028
@ CAM CHAIN TENSIONER ROLLER MOST_50_70 TRX90 (307D)
@ CAM CHAIN TENSIONER ROLLER MOST_50_70 TRX90 (307D)

307D
@ _#5


@ _#6


@ **CAM_CHAIN TENSIONER_SPRING Z50_1988_&_NEWER<P>CT70_1991_TO_94 ALL_XR50/70 ALL_CRF50/70 ALL_TRX90'S C70_1982_&_83 ATC70_1985<P>ALL_TRX70 7/20M (210R)
@ **CAM_CHAIN TENSIONER_SPRING Z50_1988_&_NEWER

CT70_1991_TO_94 ALL_XR50/70 ALL_CRF50/70 ALL_TRX90'S C70_1982_&_83 ATC70_1985

ALL_TRX70 7/20M (210R)

210R
@ _#7


@ *CAM CHAIN TENSIONER SPRING "A" FITS Z50_CT70 ATC70_ST90 CT90K4_TO_79 (W/_MAN._ADJUSTERS) ATC70_1973_TO_84 14541-086-010 7/20M (220T)
@ *CAM CHAIN TENSIONER SPRING "A" FITS Z50_CT70 ATC70_ST90 CT90K4_TO_79 (W/_MAN._ADJUSTERS) ATC70_1973_TO_84 14541-086-010 7/20M (220T)

220T
@ _#8


@ *SPRING_B CAM_CHAIN TENSIONER 14542-086-000 7/20M (220Q)
@ *SPRING_B CAM_CHAIN TENSIONER 14542-086-000 7/20M (220Q)

220Q
@ _#9


@ *CAM CHAIN TENSIONER PUSH ROD NEW TYPE 14550-GB0-911 1/22A (273N)
@ *CAM CHAIN TENSIONER PUSH ROD NEW TYPE 14550-GB0-911 1/22A (273N)

273N
@ _#10


@ **CAM_CHAIN TENSIONER PUSH_ROD (SEE_FITMENTS) 14550-086-010 1/22M (270J)
@ **CAM_CHAIN TENSIONER PUSH_ROD (SEE_FITMENTS) 14550-086-010 1/22M (270J)

270J
@ _#11


@ *CAM CHAIN TENSIONER LOCK SCREW 14561-086-010 1/21M (204Z)
@ *CAM CHAIN TENSIONER LOCK SCREW 14561-086-010 1/21M (204Z)

204z
@ _#12


@ _#13


@ *RUBBER CAM CHAIN TENSIONER ALL 50'S/70'S THRU 2007 14566-086-030 1/22M (35D)
@ *RUBBER CAM CHAIN TENSIONER ALL 50'S/70'S THRU 2007 14566-086-030 1/22M (35D)

35D
@ _#14


@ CAM CHAIN GUIDE IN CYLINDER MOST_50_70 TRX90 (307E) temp out of stock
@ CAM CHAIN GUIDE IN CYLINDER MOST_50_70 TRX90 (307E) temp out of stock

307E
@ **CAM_CHAIN_ROLLER OEM_HONDA_PART CT70/Z50/PASSPORT ALL_ATC70_TRX70'S 14610-086-010 1/21M (24B)
@ **CAM_CHAIN_ROLLER OEM_HONDA_PART CT70/Z50/PASSPORT ALL_ATC70_TRX70'S 14610-086-010 1/21M (24B)

24B
@ _#15


@ *CHAIN ROLLER PIN BOLT 14615-035-010 1/22A (54G)
@ *CHAIN ROLLER PIN BOLT 14615-035-010 1/22A (54G)

54G
@ _#16


@ *SPROCKET OIL PUMP Z50_AND CT70K0/82 ALL_TRX90 ALL_XR50_CRF50 ALL_XR70_CRF70<P>MOST ALL_50'S_&_70'S 14670-035-030 14670-GBJ-M30 1/20M (R2033)
@ *SPROCKET OIL PUMP Z50_AND CT70K0/82 ALL_TRX90 ALL_XR50_CRF50 ALL_XR70_CRF70

MOST ALL_50'S_&_70'S 14670-035-030 14670-GBJ-M30 1/20M (R2033)

R2033
@ _#17


@ OIL PUMP DRIVE SHAFT OLD TYPE (Z50_CT70_1981_&_OLDER) (ALL_SL70_XL70) (FITS_ALL_ATC70) (ALL_TRX70) 1/19M (281W)
@ OIL PUMP DRIVE SHAFT OLD TYPE (Z50_CT70_1981_&_OLDER) (ALL_SL70_XL70) (FITS_ALL_ATC70) (ALL_TRX70) 1/19M (281W)

281W
@ OIL_PUMP_SPINDLE OLD_TYPE 50'S 70'S 1/19M (281W)
@ OIL_PUMP_SPINDLE OLD_TYPE 50'S 70'S 1/19M (281W)

281W
@ **SPINDLE OIL PUMP DRIVE 14675-178-000 1/21M (81L)
@ **SPINDLE OIL PUMP DRIVE 14675-178-000 1/21M (81L)

81L
@ _#18


@ *BOLT CAM CHAIN TENSIONER SPRING 90081-035-000 1/21A (270L)
@ *BOLT CAM CHAIN TENSIONER SPRING 90081-035-000 1/21A (270L)

270L
@ _#19


@ *CAM CHAIN SPRING TENSIONER PLUG BOLT, SEALING 1/22M 90081-086-000 (R2270)
@ *CAM CHAIN SPRING TENSIONER PLUG BOLT, SEALING 1/22M 90081-086-000 (R2270)

R2270
@ _#20


@ _#21


NO LONGER AVAILABLE FROM DRATV @ *SPRING CAP WASHER 14mm 50'S 70'S 90'S 110'S 90441-035-000 1/22A (R2256)
NO LONGER AVAILABLE FROM DRATV @ *SPRING CAP WASHER 14mm 50'S 70'S 90'S 110'S 90441-035-000 1/22A (R2256)

R2256
@ _#22


@ _#23


@ *ALUMINUM WASHER CAM ROLLER PIN/BOLT 50/70/90/110 90481-035-000 1/21A (R2100)
@ *ALUMINUM WASHER CAM ROLLER PIN/BOLT 50/70/90/110 90481-035-000 1/21A (R2100)

R2100
@ _#24


@ *CAM_CHAIN TENSIONER and CT90_LEFT COVER_PLATE SCREW'S O-RING 5.5MM_X_1.5MM 91301-216-000 7/20A (205F)
@ *CAM_CHAIN TENSIONER and CT90_LEFT COVER_PLATE SCREW'S O-RING 5.5MM_X_1.5MM 91301-216-000 7/20A (205F)

205F
@ _#25


@ *NUT, HEX. 8mm oem honda 94001-08000-0S 1/22A (R2262)
@ *NUT, HEX. 8mm oem honda 94001-08000-0S 1/22A (R2262)

R2262
@ --------------------OTHER RELATED PARTS--------------------


@ **CRANK'S CAM_CHAIN_SPROCKET CT70/C70/Z50 1/20M (R2032)
@ **CRANK'S CAM_CHAIN_SPROCKET CT70/C70/Z50 1/20M (R2032)

R2032
