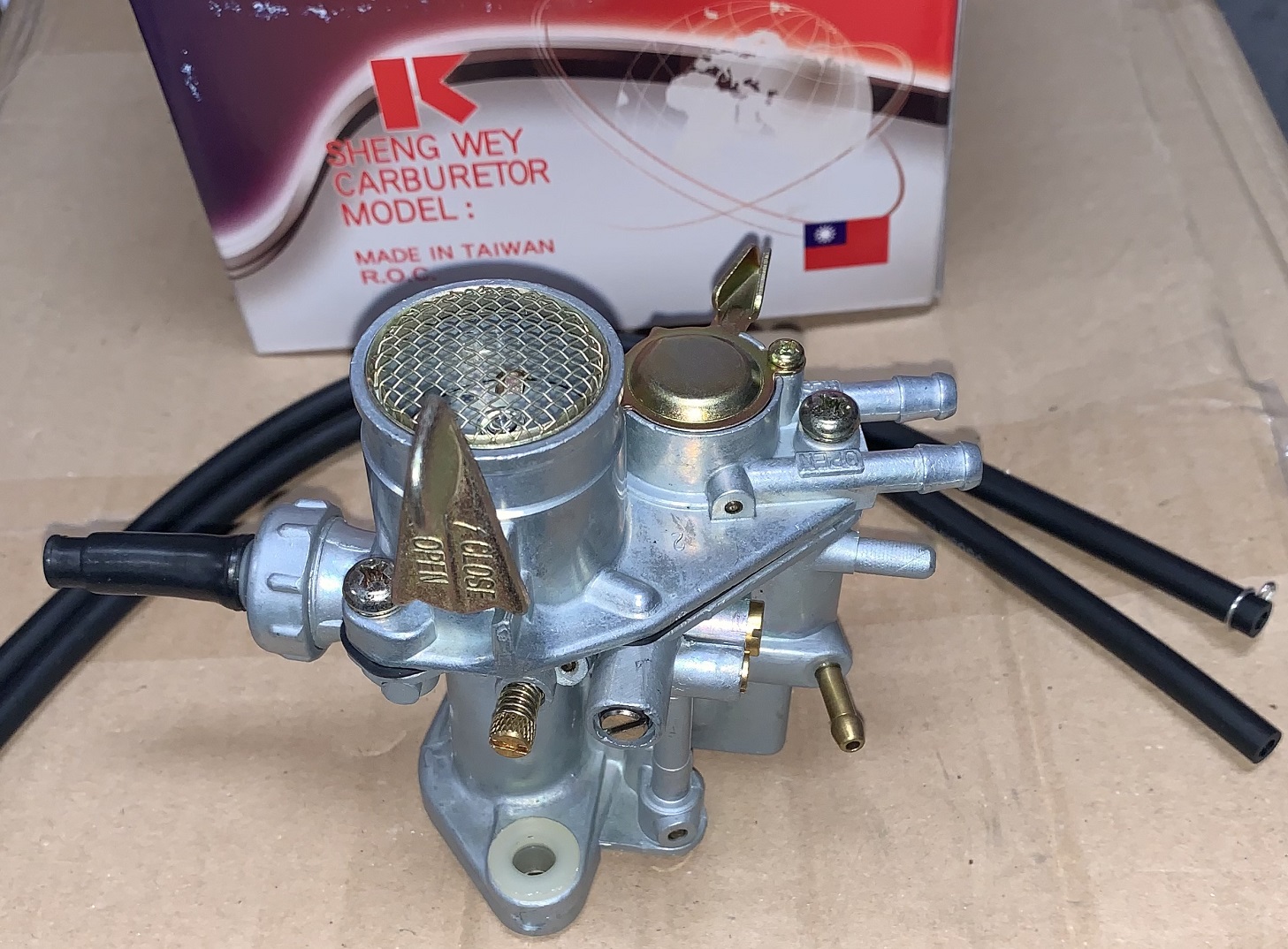

@ C70M CARBURATOR DOWN DRAFT "SHENG_WEY" BRAND<p>REPLACES OEM NUMBERS 16100-087-791 16100-087-792 16100-087-793 7/20T (201T)

THIS IS ABOUT A PERFECT COPY OF THE ORIDGINAL C70M DOWN DRAFT CARBS. THIS IS JETTED FOR STOCK ENGINES.

MAIN IS # 75 ON STOCK C70M'S

DON'T FORGET TO SET YOUR INTAKE VALVE CLEARANCE BEFORE RUNNING THIS NEW CARB.


201T

Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge

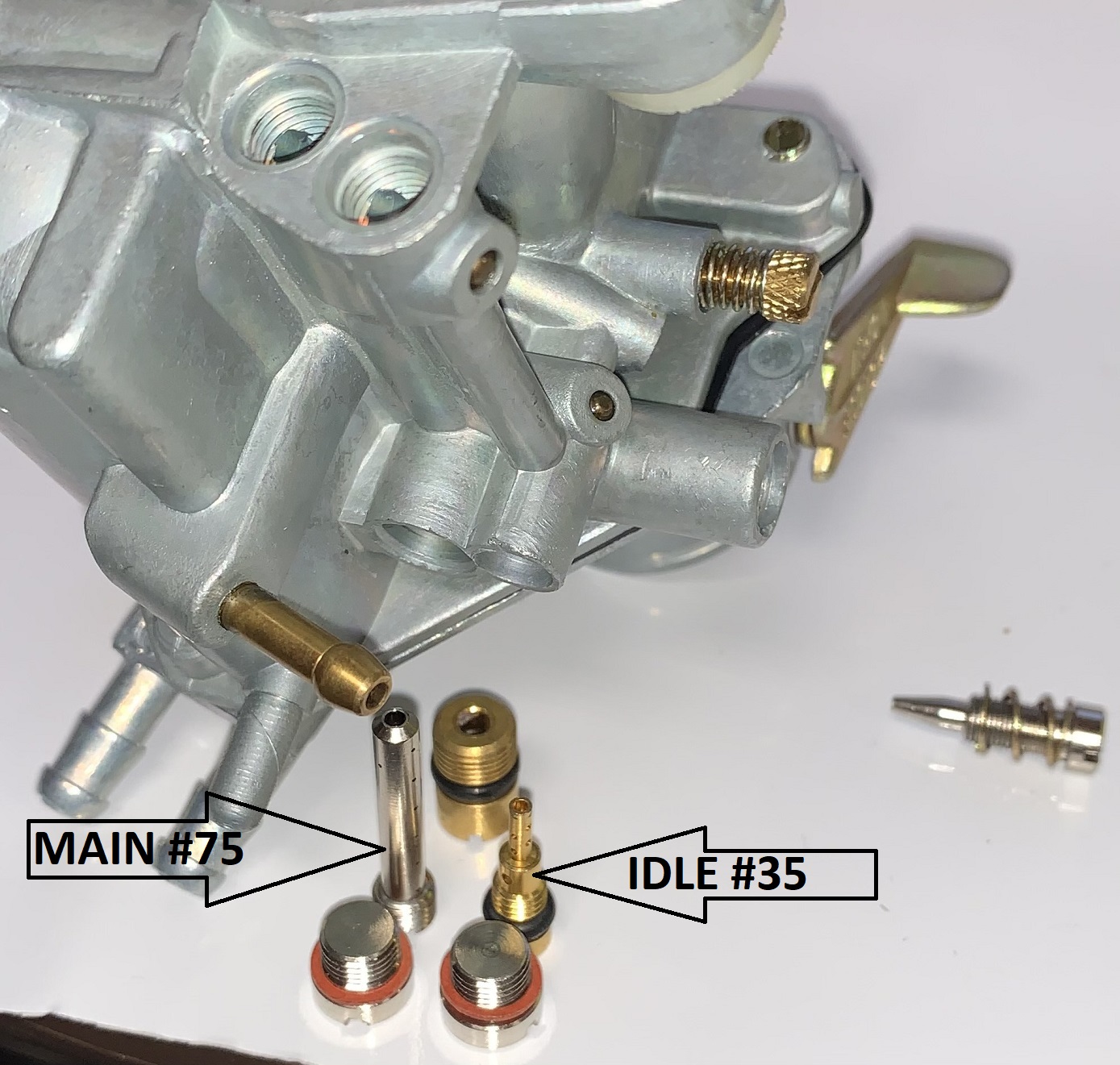

JET-ISH STUFF

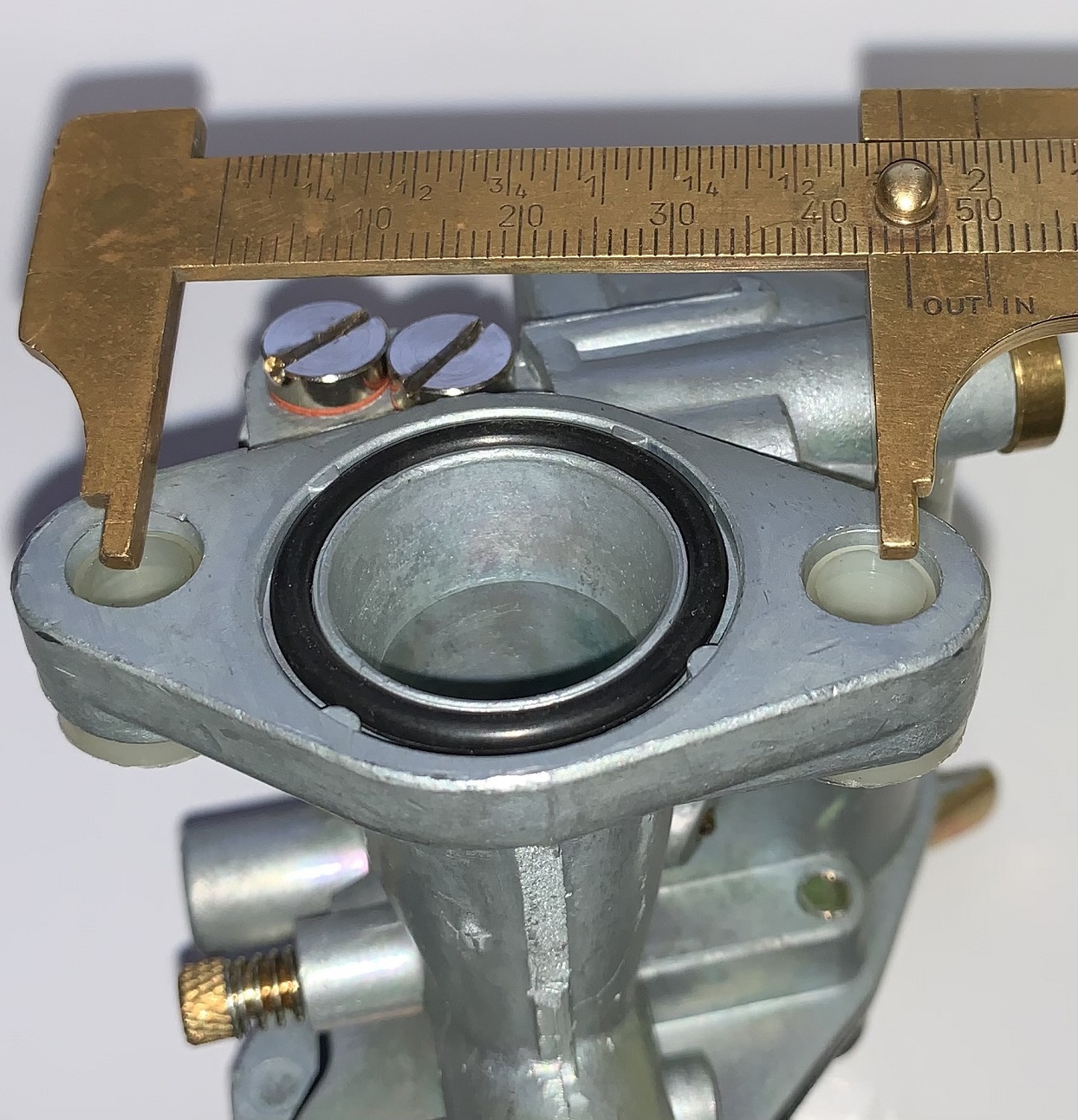

45MM WHERE IT BOLTS TO THE HEAD


DIAGRAM


SLIDE DIAMETER 13MM


Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
PETCOCK SIDE


CHOKE LEVER SIDE


MOUNTING FLANGE SIDE


ADJUSTING SCREWS VIEW
