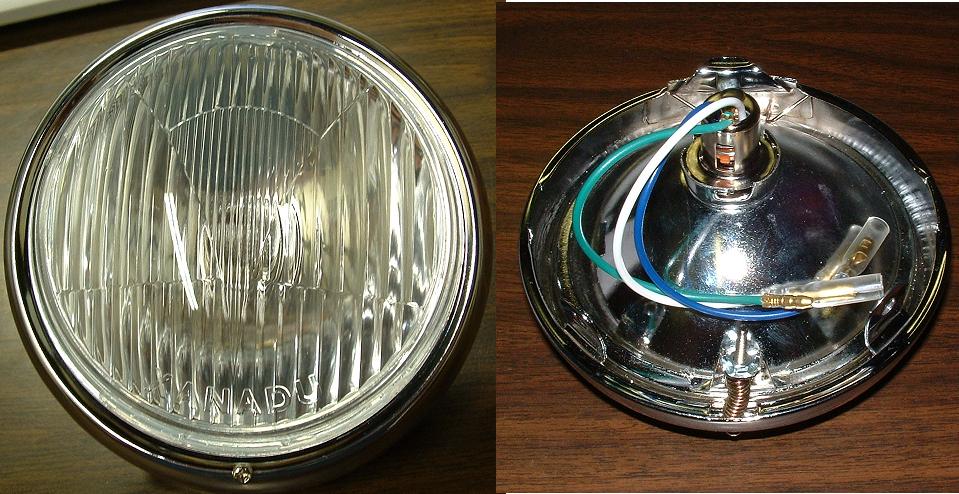

@ C70 PASSPORT (MAYBE_M_&_K1'S_TOO) HEADLIGHT ASSY WITH REPLACEABLE BULB (400020) (OFF_ROAD_USE_ONLY) temp out of stock

I WILL BE RIGHT UP FRONT,, THESE TAKE SOME BENDING/TWEAKING,

OF THE TABS ON THE BACK SIDE OF CHROME RING TO FIT CORRECTLY..

AND THEY SHOW SOME SIGNS OF LONG SHELF LIFE ,, BUT THEY ARE NEW !!

JUST MAKE THE TOP TAB LOOK LIKE THE OLD LIGHT'S AND THE BOTTOM TABS GO UP A TAD...

I NOW BE-LEAVE THIS WILL FIT THE C70K1 AND C70M'S TOO

1980 AND 1981 PASSPORTS ARE STOCK 6 VOLT

1982 AND 1983 ARE STOCK 12 VOLT

SPARE BULBS ARE LISTED BELOW ON THIS PAGE

6 VOLT= 24N AND 12 VOLT = HL113
===================================================

THIS IS A REPLACEMENT HEADLIGHT ASSY THAT HAS JUST A SMALL REPLACEABLE HEADLIGHT BULB SO WHEN SHE BLOWS FOR WHATEVER REASON YOU ONLY NEED TO SPEND 3 OR 4 BUCKS INSTEAD OF $40 TO 50.

IT DOES USE A DIFFERENT MOUNTING HOLE THAN THE ORIGINAL ASSY. USES BUT THE HOLE IS THERE! ALL YOU NEED TO DO IS SWITCH THE RUBBER PLUG FROM ONE HOLE TO ANOTHER. YOU WILL SEE WHAT I MEAN WHEN YOU LOOK AT YOUR BIKE. ONE OTHER THING THE BLUE WIRE ONLY HAS 1 FEMALE CONNECTOR AND NORMALLY HAS TWO (ONE GOES TO HIGH BEAM INDICATOR) (ONE GOES TO HEAD LIGHT BULB)...., see our TM5 and TM6 LISTED BELOW ON THIS PAGE IF YOU WANT TO KEEP IT LIKE ORIGINAL, OR JUST SPLICE THE ONE FROM YOUR OLD BULB.

M_&_K1'S I THINK THIS WILL WORK BUT YOU MAY WANT TO GET THE 25W 25W BULB

400020PICK_VOLTAGE_HERE:

@ 6V_25w_25w HEADLIGHT BULB CT200 CT90KO/K1 (ATC110_to_1980)<P>replaces 34901-030-003 34901-087-640 (BULB113)@ 6V_25w_25w HEADLIGHT BULB CT200 CT90KO/K1 (ATC110_to_1980)

replaces 34901-030-003 34901-087-640 (BULB113)THESE ARE 6V-25W/25W BULBS THEY FIT CT200 CT90KO (CT90K1 ONLY) SOLD EA.

THEY ALSO FIT OUR 400020 PASSPORT HEADLIGHT ASSY.

Honda Motorcycle 1976 TL125S

Honda Motorcycle Models with no year CL90

Honda Motorcycle 1981 XR250R

Honda Motorcycle 1979 XR500

Honda Motorcycle 1982 XR250R

Honda Motorcycle 1979 XR250

Honda Motorcycle 1981 XR500R

Honda Motorcycle 1976 MR250

Honda Motorcycle 1980 XR250

Honda Motorcycle Models with no year S90

Honda Motorcycle Models with no year CT90

Honda ATV 1979 ATC110

Honda ATV 1980 ATC110

Honda Motorcycle 1982 XR500R

Honda Motorcycle 1980 XR500

Honda Motorcycle 1976 MR175

Honda Motorcycle Models with no year MR175

Honda Motorcycle Models with no year CA200

Honda Motorcycle Models with no year CT90K1

Honda Motorcycle Models with no year TL250

Honda Motorcycle Models with no year CM91

Honda Motorcycle Models with no year CT200

Honda Motorcycle 1976 TL250

Honda Motorcycle 1982 XR200R

Honda Motorcycle 1977 MR175

Honda Motorcycle 1979 XR185

Honda Motorcycle 1983 XR200R

Honda Motorcycle 1980 XR200

Honda Motorcycle 1981 XR200R

Honda Motorcycle Models with no year TL125K1

Honda Motorcycle Models with no year TL125K2

BULB113
@ 12V_25W/25W HEAD LIGHT BULB  (HL113) (BULB115)@ 12V_25W/25W HEAD LIGHT BULB (HL113) (BULB115)THIS BULB WORKS TO REPLACE 6V 15/15W & 6V 25/25W BULBS WHEN DOING AN ENGINE CONVERSION.

THIS BULB FITS IN OUR (400020 PASSPORT) and OUR (AFT.051) HEADLIGHT ASSY.

BULB115
@ HEADLIGHT_SOCKET Z50K1/78  CT70K0_HK0 CT90KO_K1 ALL_ATC90'S REPLACES 33130-051-690 33130-030-810 1/21T (23L) @ HEADLIGHT_SOCKET Z50K1/78 CT70K0_HK0 CT90KO_K1 ALL_ATC90'S REPLACES 33130-051-690 33130-030-810 1/21T (23L) NOW HAS THE DOUBLE FEMALE CONNECTOR ON THE BLUE HIGH BEAM WIRE

23L
