@ ALL NEW !! 12V CDI HYBRID/LIFAN/HONDA ENGINE<p>70CC 4-SPEED<p>4 UP SHIFT PATTERN<p>SEMI AUTO CLUTCH<p>UPS_TO_LOWER 48_ONLY<p>2_TO_14_DAY_WAIT

1. ALL PARTS ARE BRAND NEW !! ALL PARTS

------------------------------------------------------------------------

2. EXCEPT FOR THE STATOR WIRE PIGTAIL CONNECTORS

THESE ARE A PLUG AND PLAY FOR ALL:

HONDA (Z50R'S 1988 TO 1999) (ZB50 1988)

[(C70 1982 AND 1983 NOTE! CONVERTS TO KICK ONLY STARTING)]

(CT70 1991 TO 1994) (XR50 ALL) (XR70 ALL) (CRF50 ALL) (CRF70 ALL)

================================================

NOTE!! (Z50A Z50R TO 1987) AND (6-VOLT MODEL 70CC'S) WILL NEED EXTRA PARTS ie NEW ELECTRICAL

================================================

CT90 ST90 SL90 CL90 S90 CM91 OWNERS CLICK/READ THE 2ND

ITEM POSTED BELOW

================================================

------------------------------------------------------------------------

3. THIS HAS THE SMALL CLUTCH COVER SO IT LOOKS JUST LIKE THE ORIGNAL HONDA ENGINES

4. COMES WITH A 14 TOOTH 420 CHAIN TYPE

5. ON MOST BIKES YOU WILL WANT TO CUT THE SHIFT PEDAL LIKE THE PICTURE SHOWS

6. YOU WILL NEED TO ADD MOTORCYCLE ENGINE OIL 10W40 (ABOUT 28 TO 30 OZ.)

7. THIS ENGINE IS SHIPPED WITH A NEW SHORTIE FLYWHEEL COVER BECAUSE THE LONGER

OEM HONDA COVER IS TOO EASY FOR THE DELIVERY GUYS TO BRAKE OFF THE BACK END

SO NO WARRANTY IF THE SHORTIE COVER GETS BROKEN (95% OF THE TIME IT IS FINE TOO)

8. THE CYLINDER IS MARKED 72CM3 and THE BORE IS 47MM

9. BIKES THAT ARE 6V SYSTEMS WILL NEED TO CONVERT BULBS AND BATTERY TO 12 VOLT OR

GET A 6V REGULATOR/RECTIFIER TO CONVERT THE COMPLETE ENGINE BACK TO 6V (CLICK 1st ITEM BELOW) THE NEW ENGINE'S STATOR AND 6V REG/REC MAKE THE LIGHTS BRIGHTER AT IDLE AND CHARGES BETTER THAN THE STOCK SYSTEM DID BY FAR.

REMEMBER TO ALLOW_2_TO_14_DAYS_BUILD_TIME


70CC/4UP/AUTO

@ EXTRA PARTS THAT MAY BE NEEDED FOR 12V CDI HYBRID/LIFAN/HONDA ENGINE INSTALLS
@ IF YOU WOULD LIKE A NEW ENGINE FOR YOUR CT90 ST90 SL90 CL90 CM91 OR S90<p>HERE ARE MOST OF THE EXTRA HURDLES YOU WILL NEED TO OVERCOME
@ HYBRID/LIFAN/HONDA MOSTLY COMPLETE ENGINE INSTALL KIT FOR OLDER POINTS AND BATTERY TYPE BIKES (CREIKCT70)
@ HYBRID/LIFAN/HONDA ENGINE BASIC INSTALL KIT FOR OLDER POINTS TYPE (CREIK/BASIC)
Click to enlarge
@ EXTRA PARTS THAT MAY BE NEEDED FOR 12V CDI HYBRID/LIFAN/HONDA ENGINE INSTALLS


@ IF YOU WOULD LIKE A NEW ENGINE FOR YOUR CT90 ST90 SL90 CL90 CM91 OR S90

HERE ARE MOST OF THE EXTRA HURDLES YOU WILL NEED TO OVERCOME


@ HYBRID/LIFAN/HONDA MOSTLY COMPLETE ENGINE INSTALL KIT FOR OLDER POINTS AND BATTERY TYPE BIKES (CREIKCT70)

MCEIK/ONLY_SOLD_WITH_ENGINE
@ HYBRID/LIFAN/HONDA ENGINE BASIC INSTALL KIT FOR OLDER POINTS TYPE (CREIK/BASIC)

BEIK/ONLY_SOLD_WITH_ENGINE
@ MOST NOT ALL APPLICATIONS WILL WANT TO CUT THE HEAL PART OFF LIKE THIS PICTURE SHOWS


Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
@ ALL ENGINES ARE SHIPPED WITH THIS SHORT FLYWHEEL COVER TO PROTECT THE NEW STATOR AND OEM HONDA COVER FROM DAMAGE SO YOU GET TWO COVERS


@ BOTTOM OF SHIPPING FLYWHEEL COVER / REPLACEMENT NOT COVERED IF DAMAGED IN SHIPPING


@ RIGHT SIDE 70CC/50CC


@ BOTTOM 70CC/50CC


@ TOP FRONT 70CC/50CC


Click to enlarge
Click to enlarge
Click to enlarge
@ SOME ELECTRICAL INSTRUCTIONS FOR ENGINE SWAP TO CT70 AND OTHERS

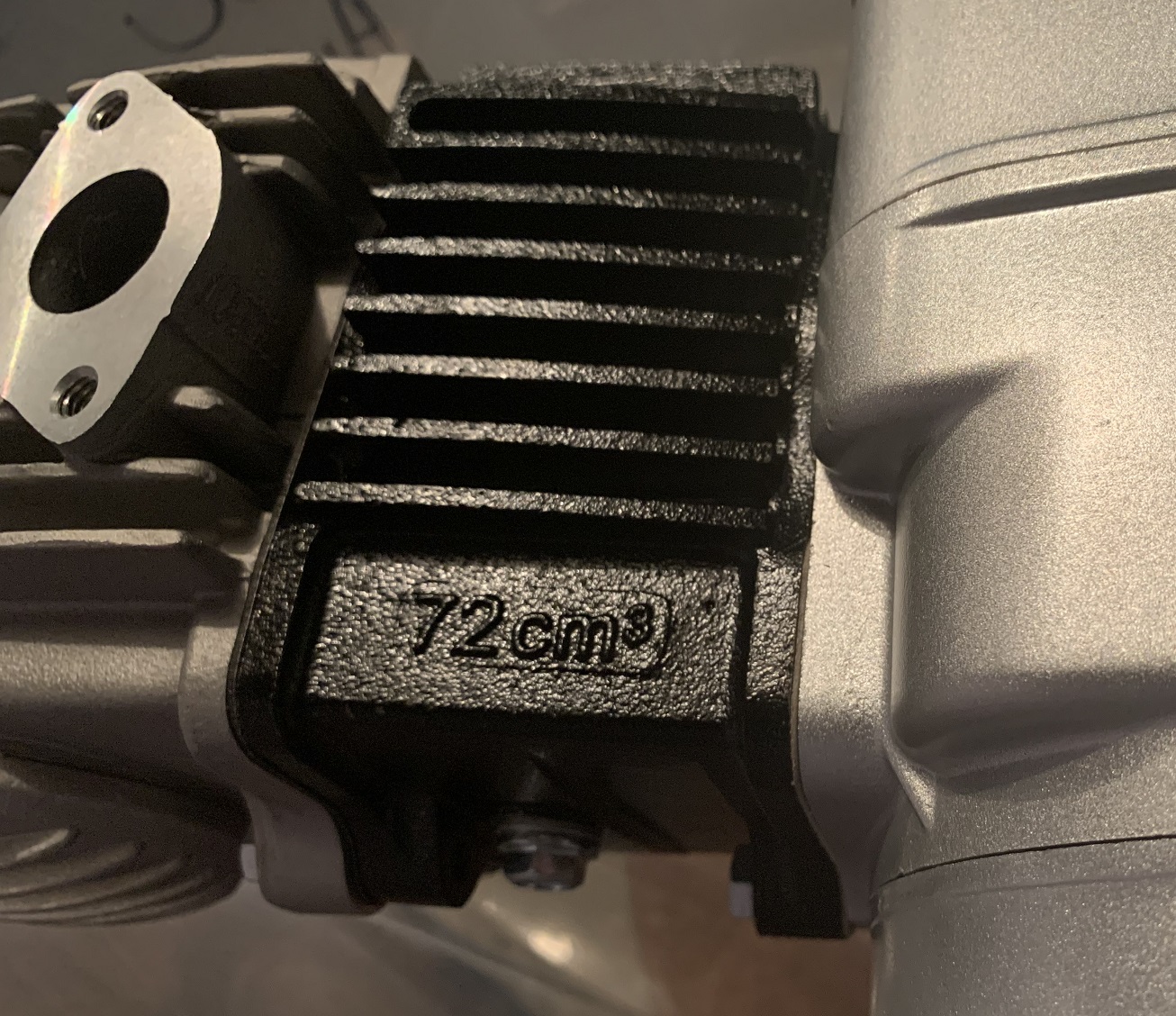

@ 70CC CYLINDER MARKED 72cm3 AND 63MM TALL


@ BACK TOP 70CC/50CC


@ LEFT SIDE 70CC/50CC


@ SOME ELECTRICAL INSTRUCTIONS FOR ENGINE SWAP TO CT70 AND OTHERS
